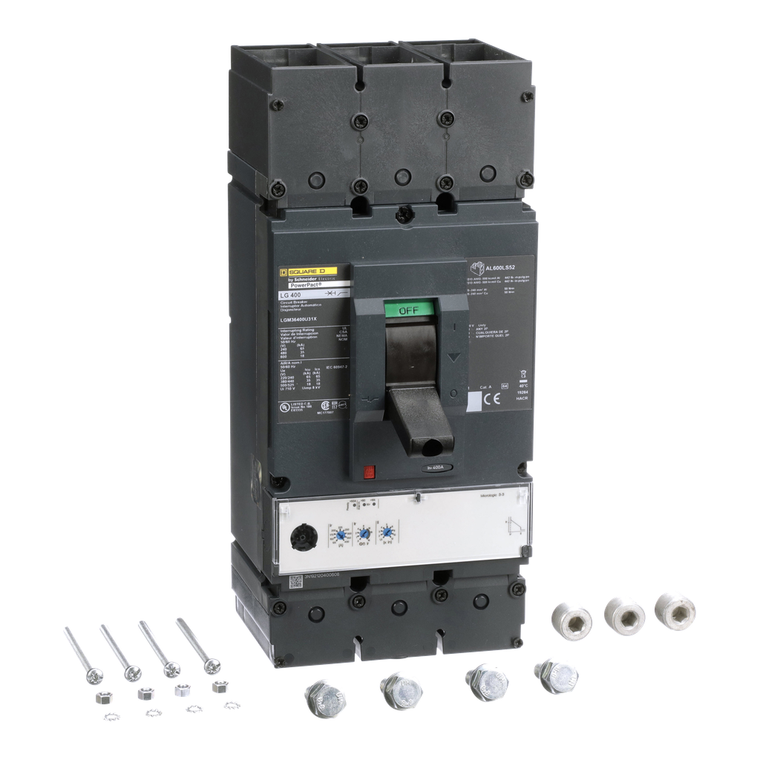

Schneider Electric LGM36600U31X Molded Case Circuit Breaker 600V 400A

Schneider Electric LGM36600U31X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LGM36600U31X
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$7,484.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on the line side and terminal nuts on the load side. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Operation:
-2-70 °C
Wire Stripping Length:
31 mm || 61 mm
Continuous Current Rating:
0.8
Breaking Capacity Code:
G
Eu Rohs Directive:
Compliant with Exemptions
Network Frequency:
50/60 Hz
Electrical Connection:
lugs, line || terminal nut, load
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Depth:
110 mm
Rohs Exemption Information:
Yes
Pollution Degree:
3 IEC 60947-1
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Environmental Disclosure:
ENVPEP2206029EN
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Width:
140 mm
Ambient Air Temperature For Storage:
-50-85 °C
Line Rated Current:
600-600 A
Warranty:
18 months
Communication Interface:
Modbus || Ethernet
Device Short Name:
L-Frame
Poles Description:
3P
Product Or Component Type:
circuit breaker
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Color:
Black
Ip Degree Of Protection:
front cover IP40
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Product Name:
PowerPact L
Pvc Free:
Yes
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Mounting Mode:
unit mount lug)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Utilisation Category:
category A
Height:
340 mm
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range:
PowerPact
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Product Certifications:
UL || CSA || NOM
Trip Unit Name:
MicroLogic 3.3
Net Weight:
6.2 kg
Suitability For Isolation:
yes IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Device Application:
distribution
Mounting Support:
lug
Terminal Identifier:
AL600LS52K3
Control Type:
toggle
Circularity Profile:
ENVEOLI2206029EN
Sustainable Offer Status:
Green Premium product
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
