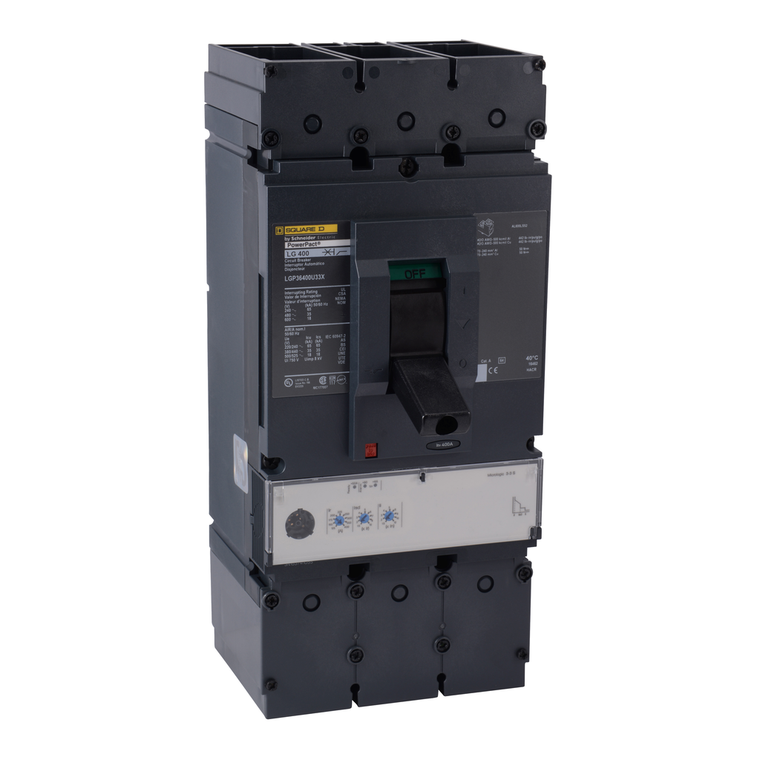

Schneider Electric LGP36400CU33X Molded Case Circuit Breaker 600V 600A

Schneider Electric LGP36400CU33X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LGP36400CU33X
|
UPC:
785901981862
Availability:
Factory stock
$6,105.49
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has terminal nuts on the line side and lugs on the load side. This circuit breaker has a continuous current rating of 100%. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL600LS52K3
Pollution Degree:
3 IEC 60947-1
Width:
140 mm
Range:
PowerPact
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Mounting Support:
lug
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Application:
HACR rated
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Warranty:
18 months
Trip Unit Name:
MicroLogic 3.3 S
Ip Degree Of Protection:
front cover IP40
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Poles Description:
3P
Utilisation Category:
category A
Mounting Mode:
unit mount lug)
Device Short Name:
L-Frame
Product Name:
PowerPact L
Electrical Connection:
terminal nut, line || lugs, load
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
Ambient Air Temperature For Operation:
-2-70 °C
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Product Or Component Type:
circuit breaker
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-50-85 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP2206029EN
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Line Rated Current:
400-400 A
Communication Interface:
Modbus || Ethernet
Wire Stripping Length:
31 mm || 61 mm
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Depth:
110 mm
Breaking Capacity Code:
G
Suitability For Isolation:
yes IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Network Frequency:
50/60 Hz
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Net Weight:
6.2 kg
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Color:
Black
Rohs Exemption Information:
Yes
Control Type:
toggle
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Height:
340 mm
Product Certifications:
UL || CSA || NOM
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
ENVEOLI2206029EN
Continuous Current Rating:
1
