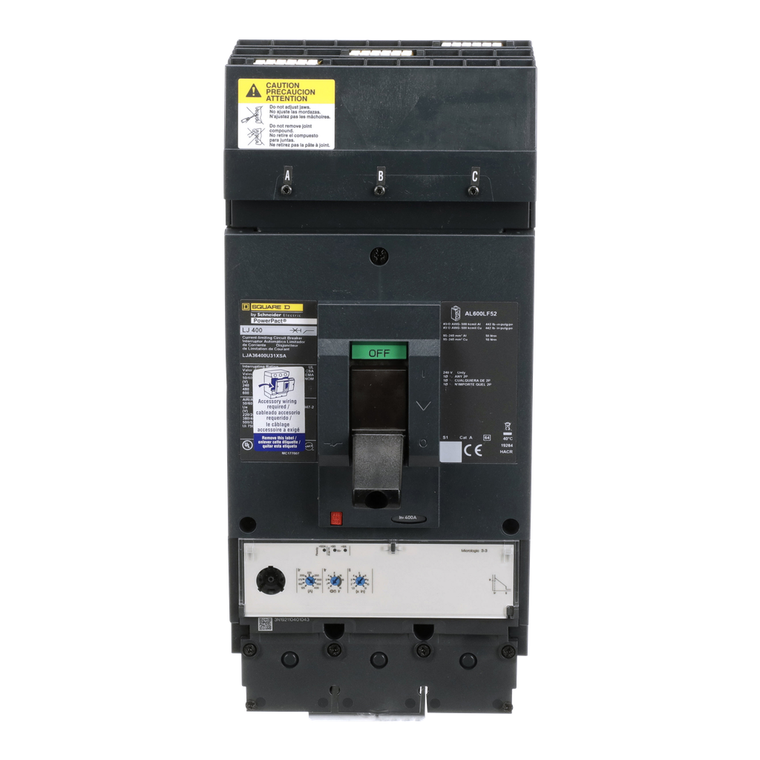

Schneider Electric LJA36400U31XSA Molded Case Circuit Breaker 600V 400A

Schneider Electric LJA36400U31XSA Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LJA36400U31XSA
|
UPC:
3606486284384
Availability:
Contact us to confirm availability and lead times.
$9,490.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. This unit includes a factory installed 120VAC shunt trip.
Additional Information
Warranty:
18 months
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity Code:
J
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Mercury Free:
Yes
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Electrical Connection:
I-Line connection, line || lugs, load
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Pvc Free:
Yes
Ip Degree Of Protection:
front cover IP40
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Network Frequency:
50/60 Hz
Continuous Current Rating:
0.8
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Line Rated Current:
400-400 A
Tightening Torque:
50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Net Weight:
6.2 kg
Control Type:
toggle
Circularity Profile:
ENVEOLI2206029EN
Terminal Identifier:
AL600LF52K3
Trip Unit Name:
MicroLogic 3.3
Protection Technology:
current limiter
Eu Rohs Directive:
Compliant with Exemptions
Mounting Support:
bracket
Wire Stripping Length:
31 mm
Suitability For Isolation:
yes IEC 60947-2
Range:
PowerPact
Device Short Name:
L-Frame
Mounting Mode:
I-Line bracket)
Depth:
110 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Width:
140 mm
Ambient Air Temperature For Operation:
-2-70 °C
Ambient Air Temperature For Storage:
-50-85 °C
Environmental Disclosure:
ENVPEP2206029EN
Awg Gauge:
AWG 3/0...500 kcmil aluminium/copper
Utilisation Category:
category A
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Communication Interface:
Modbus || Ethernet
Phase Connection:
ABC
Circuit Breaker Application:
HACR rated
Height:
340 mm
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Device Application:
distribution
Product Or Component Type:
circuit breaker
Poles Description:
3P
Product Certifications:
UL || CSA || NOM
Rohs Exemption Information:
Yes
Mounting Height:
6 in
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Name:
PowerPact L
Sustainable Offer Status:
Green Premium product
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Color:
Black
Accessory / Separate Part Type:
shunt trip cover frame
Pollution Degree:
3 IEC 60947-1
