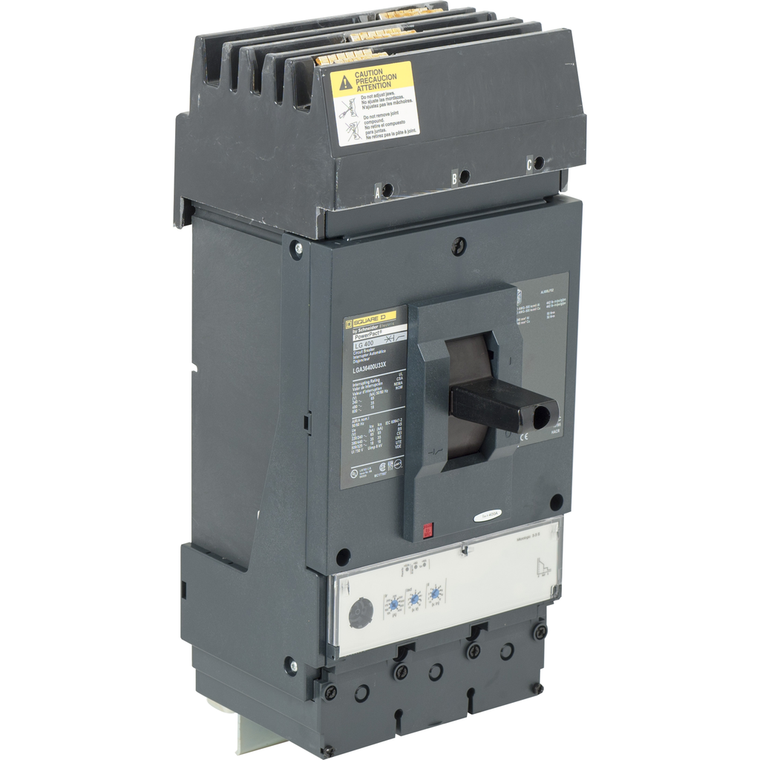

Schneider Electric LJA36400U33XYP Molded Case Circuit Breaker 600V 600A

Schneider Electric LJA36400U33XYP Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LJA36400U33XYP
|
UPC:
7.85901E+11
Availability:
Factory stock
$5,759.94
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. This unit includes a factory installed padlock handle.
Additional Information
Mounting Support:
bracket
Ambient Air Temperature For Storage:
-50-85 °C
Tightening Torque:
50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
Environmental Disclosure:
ENVPEP2206029EN
Eu Rohs Directive:
Compliant with Exemptions
Mounting Height:
6 in
Pvc Free:
Yes
Range:
PowerPact
Utilisation Category:
category A
Product Certifications:
UL || CSA || NOM
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Device Application:
distribution
Breaking Capacity Code:
J
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
Phase Connection:
ABC
Net Weight:
6.2 kg
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ip Degree Of Protection:
front cover IP40
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Color:
Black
Rohs Exemption Information:
Yes
Continuous Current Rating:
0.8
Terminal Identifier:
AL600LF52K3
Trip Unit Name:
MicroLogic 3.3 S
Height:
340 mm
Electrical Connection:
I-Line connection, line || lugs, load
Awg Gauge:
AWG 3/0...500 kcmil aluminium/copper
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Suitability For Isolation:
yes IEC 60947-2
Wire Stripping Length:
31 mm
Circularity Profile:
ENVEOLI2206029EN
Device Short Name:
L-Frame
Product Or Component Type:
circuit breaker
Communication Interface:
Modbus || Ethernet
Pollution Degree:
3 IEC 60947-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Network Frequency:
50/60 Hz
Product Name:
PowerPact L
Accessory / Separate Part Type:
padlocking handle ON and OFF end
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Poles Description:
3P
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Mounting Mode:
I-Line bracket)
Ambient Air Temperature For Operation:
-2-70 °C
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Protection Technology:
current limiter
Circuit Breaker Application:
HACR rated
Line Rated Current:
400-400 A
Control Type:
toggle
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Width:
140 mm
Depth:
110 mm
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
