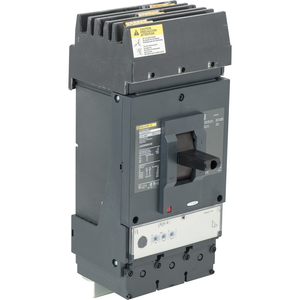

Schneider Electric LJF36600U33X Molded Case Circuit Breaker 480V 400A

Schneider Electric LJF36600U33X Molded Case Circuit Breaker 480V 400A

Schneider Electric
SKU:
LJF36600U33X
|
UPC:
3606482046306
$11,134.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has a busbar connection. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Mounting Mode:
unit mount busbar)
Rohs Exemption Information:
Yes
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Network Frequency:
50/60 Hz
Pollution Degree:
3 IEC 60947-1
Width:
140 mm
Protection Technology:
current limiter
Product Name:
PowerPact L
Trip Unit Name:
MicroLogic 3.3 S
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Circularity Profile:
ENVEOLI2206029EN
Pvc Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Certifications:
UL || CSA || NOM
Net Weight:
6.2 kg
Ambient Air Temperature For Storage:
-50-85 °C
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Circuit Breaker Application:
HACR rated
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Ambient Air Temperature For Operation:
-2-70 °C
Poles Description:
3P
Electrical Connection:
busbar connection, line || busbar connection, load
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Device Application:
distribution
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Type:
toggle
Communication Interface:
Modbus || Ethernet
Height:
340 mm
Eu Rohs Directive:
Compliant with Exemptions
Ip Degree Of Protection:
front cover IP40
Utilisation Category:
category A
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Wire Stripping Length:
31 mm || 61 mm
Range:
PowerPact
Product Or Component Type:
circuit breaker
Terminal Identifier:
AL600LS52K3
Device Short Name:
L-Frame
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Suitability For Isolation:
yes IEC 60947-2
Depth:
110 mm
Environmental Disclosure:
ENVPEP2206029EN
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Line Rated Current:
600-600 A
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Continuous Current Rating:
0.8
Long Time Pick-Up Adjustment Range:
0.25...1 x In
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Mounting Support:
busbar
Breaking Capacity Code:
J
Color:
Black
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
