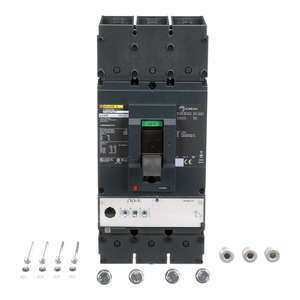

Schneider Electric LJL36400M37X Molded Case Circuit Breaker 600V 400A

Schneider Electric LJL36400M37X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LJL36400M37X
|
UPC:
785901555285
$4,727.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT L-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. PowerPacT L-Frame motor circuit protectors are available with electronic trip units. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the equivalent PowerPacT L circuit breaker. PowerPacT L protectors are available in 3 pole unit mount, I-Line, and plug in constructions. This PowerPacT L, 400A, 3 pole, MCP has an interrupting rating of 25kA at 600VAC. This protector provides MicroLogic with a 1.3M trip unit. This unit has lugs on both the line and load sides. This motor circuit protector has a continuous current rating of 80%. PowerPacT L motor circuit protectors comply to UL, CSA, and IEC standards.
Additional Information
Poles Description:
3P
Trip Unit Name:
MicroLogic 1.3 M
Mounting Support:
lug
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Width:
140 mm
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Network Frequency:
50/60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
UL || CSA || NOM
Mercury Free:
Yes
Mounting Mode:
unit mount lug)
Utilisation Category:
category A
Net Weight:
6.2 kg
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Wire Stripping Length:
31 mm || 61 mm
Magnetic Tripping Current:
500-1200 A
Range:
PowerPact
Height:
340 mm
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Product Or Component Type:
Motor Circuit Protector
Ambient Air Temperature For Operation:
-2-70 °C
Control Type:
toggle
Breaking Capacity Code:
J
Pvc Free:
Yes
Rohs Exemption Information:
Yes
Color:
Black
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Name:
PowerPact L
Line Rated Current:
400-400 A
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Circuit Breaker Application:
HACR rated
Terminal Identifier:
AL600LS52K3
Warranty:
18 months
Communication Interface:
Modbus || Ethernet
Device Application:
distribution
Local Signalling:
ready 1 LED green) || switched off (OFF) 1 trip indicator green)
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-50-85 °C
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Ip Degree Of Protection:
front cover IP40
Trip Unit Technology:
electronic, standard, MicroLogic 1.3 M, I
Circularity Profile:
ENVEOLI2206029EN
Suitability For Isolation:
yes IEC 60947-2
Depth:
110 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Pollution Degree:
3 IEC 60947-1
Device Short Name:
L-Frame
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Environmental Disclosure:
ENVPEP2206029EN
