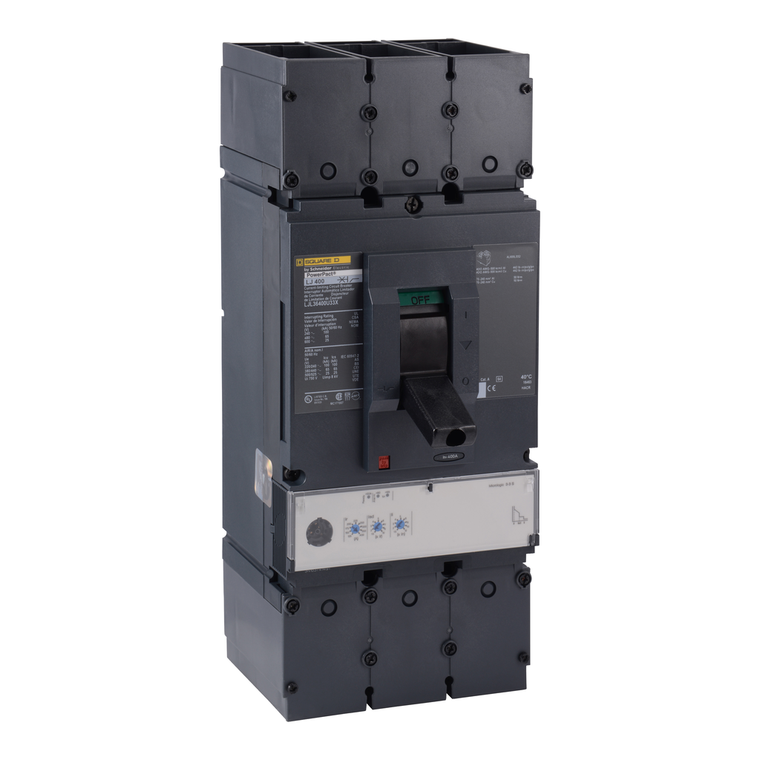

Schneider Electric LJL36400U33X Molded Case Circuit Breaker 600V 600A

Schneider Electric LJL36400U33X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LJL36400U33X
|
UPC:
785901303794
Availability:
Factory stock
$8,470.92
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Eu Rohs Directive:
Compliant with Exemptions
Pollution Degree:
3 IEC 60947-1
Depth:
110 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Continuous Current Rating:
0.8
Width:
140 mm
Mounting Support:
lug
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Device Short Name:
L-Frame
Ambient Air Temperature For Storage:
-50-85 °C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Utilisation Category:
category A
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP2206029EN
Device Application:
distribution
Product Or Component Type:
circuit breaker
Wire Stripping Length:
31 mm || 61 mm
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Product Name:
PowerPact L
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Communication Interface:
Modbus || Ethernet
Height:
340 mm
Suitability For Isolation:
yes IEC 60947-2
Pvc Free:
Yes
Mounting Mode:
unit mount lug)
Line Rated Current:
400-400 A
Poles Description:
3P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Control Type:
toggle
Circuit Breaker Application:
HACR rated
Ip Degree Of Protection:
front cover IP40
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Warranty:
18 months
Product Certifications:
UL || CSA || NOM
Sustainable Offer Status:
Green Premium product
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Breaking Capacity Code:
J
Range:
PowerPact
Electrical Connection:
lugs, line || lugs, load
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Circularity Profile:
ENVEOLI2206029EN
Color:
Black
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Net Weight:
6.2 kg
Network Frequency:
50/60 Hz
Ambient Air Temperature For Operation:
-2-70 °C
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Terminal Identifier:
AL600LS52K3
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Trip Unit Name:
MicroLogic 3.3 S
