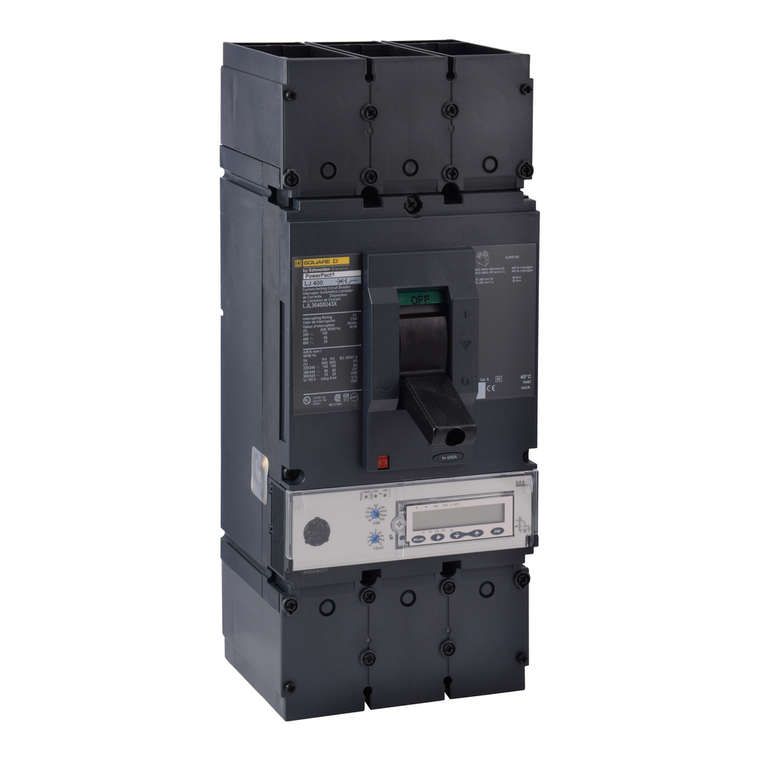

Schneider Electric LJL36600U43X Molded Case Circuit Breaker 480V 400A

Schneider Electric LJL36600U43X Molded Case Circuit Breaker 480V 400A

Schneider Electric
SKU:
LJL36600U43X
|
UPC:
785901499701
Availability:
Factory stock
$11,244.45
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 5.3A trip unit and an LSI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Protection Technology:
current limiter
Warranty:
18 months
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Control Type:
toggle
Product Certifications:
UL || CSA || NOM
Ambient Air Temperature For Operation:
-2-70 °C
Mounting Mode:
unit mount lug)
Mounting Support:
lug
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Circuit Breaker Application:
HACR rated
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Color:
Black
Trip Unit Technology:
electronic, ammeter, MicroLogic 5.3 A, LSI
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Utilisation Category:
category A
Pollution Degree:
3 IEC 60947-1
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity Code:
J
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Network Frequency:
50/60 Hz
Terminal Identifier:
AL600LS52K3
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ip Degree Of Protection:
front cover IP40
Wire Stripping Length:
31 mm || 61 mm
Electrical Connection:
lugs, line || lugs, load
Product Name:
PowerPact L
Poles Description:
3P
Trip Unit Name:
MicroLogic 5.3 A
Line Rated Current:
600-600 A
Continuous Current Rating:
0.8
Range:
PowerPact
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Rohs Exemption Information:
Yes
Depth:
110 mm
Device Application:
distribution
Ambient Air Temperature For Storage:
-50-85 °C
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP2206029EN
Pvc Free:
Yes
Mercury Free:
Yes
Suitability For Isolation:
yes IEC 60947-2
Width:
140 mm
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Communication Interface:
Modbus || Ethernet
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Product Or Component Type:
circuit breaker
Net Weight:
6.2 kg
Circularity Profile:
ENVEOLI2206029EN
Device Short Name:
L-Frame
Height:
340 mm
