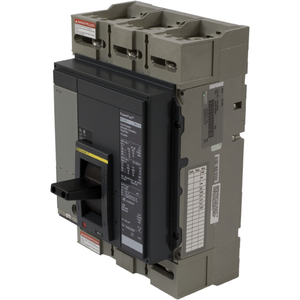

Schneider Electric LJP36400U31X Molded Case Circuit Breaker 600V 600V

(No reviews yet) Write a Review

Write a Review

Schneider Electric LJP36400U31X Molded Case Circuit Breaker 600V 600V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LJP36400U31X

UPC:

785901092988

MPN:

Condition:

New

Product Certifications:

UL || CSA || NOM

Communication Interface:

Modbus || Ethernet

Depth:

110 mm

Pvc Free:

Yes

Line Rated Current:

400-400 A

Trip Unit Name:

MicroLogic 3.3

Poles Description:

3P

Product Name:

PowerPact L

Ambient Air Temperature For Storage:

-50-85 °C

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Suitability For Isolation:

yes IEC 60947-2

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Tightening Torque:

50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)

Control Type:

toggle

Utilisation Category:

category A

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mounting Support:

lug

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Continuous Current Rating:

0.8

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Height:

340 mm

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Color:

Black

Width:

140 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Device Short Name:

L-Frame

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Warranty:

18 months

Ip Degree Of Protection:

front cover IP40

Electrical Connection:

terminal nut, line || lugs, load

Mercury Free:

Yes

Circularity Profile:

ENVEOLI2206029EN

Eu Rohs Directive:

Compliant with Exemptions

Range:

PowerPact

Breaking Capacity Code:

J

Environmental Disclosure:

ENVPEP2206029EN

Local Signalling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Awg Gauge:

2 x AWG 2/0...500 kcmil aluminium/copper

Circuit Breaker Application:

HACR rated

Mounting Mode:

unit mount lug)

Net Weight:

6.2 kg

Terminal Identifier:

AL600LS52K3

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-2-70 °C

Device Application:

distribution

Pollution Degree:

3 IEC 60947-1

Product Or Component Type:

circuit breaker

Breaking Capacity:

100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Trip Unit Technology:

electronic, standard, MicroLogic 3.3, LI

Protection Technology:

current limiter

Wire Stripping Length:

31 mm || 61 mm

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Network Frequency:

50/60 Hz
