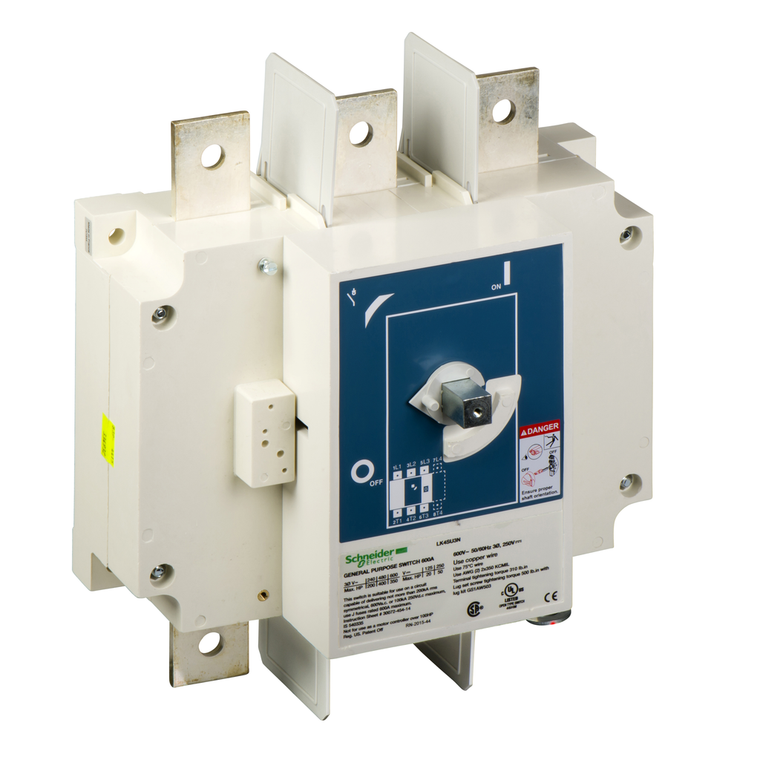

Schneider Electric LK4SU3N Disconnect Switch No Fuse 600V 600A 3P

Schneider Electric LK4SU3N Disconnect Switch No Fuse 600V 600A 3P

Schneider Electric
SKU:
LK4SU3N
|
UPC:
3606480510472
Availability:
Contact us to confirm availability and lead times.
$2,873.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 600 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 200 HP rating at 240 VAC, a 400 HP rating at 480 VAC, a 350 HP rating at 600 VAC, a 20 HP rating at 125 VDC and a 50 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 600A disconnect switch has a 200A short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept up to two 2 AWG to 600 kcmil copper or aluminum wire. The disconnect switch is 18.12 inches tall, 11.00 inches wide and 5.50 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.
Additional Information
California Proposition 65:
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Network Type:
AC || DC
Rated Power In W:
185 kW 690 V || 355 kW 400 V || 450 kW 500 V
Mechanical Durability:
6000 cycles
Control Type:
rotary handle
Width:
280 mm
Reach Free Of Svhc:
Yes
Range:
TeSys
Rated Power In Hp:
350 hp 600 V 336 A AC || 20 hp 125 V 148 A DC || 50 hp 250 V 173 A DC || 200 hp 240 V 480 A AC || 400 hp 480 V 477 A AC
Standards:
CSA C22.2 No 4 || IEC 60947-3 || UL98
Toxic Heavy Metal Free:
Yes
Electrical Durability:
1000 cycles
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Poles Description:
3P
Mounting Support:
plate
[Icw] Rated Short-Time Withstand Current:
48 kA
Product Or Component Type:
Disconnect Switch
Suitability For Isolation:
yes
Product Name:
TeSys LK
China Rohs Regulation:
X
Height:
300 mm
Eu Rohs Directive:
Compliant
[Ie] Rated Operational Current:
200 A690 V AC AC-23A IEC || 630 A400 V AC AC-22A IEC || 630 A400 V AC AC-23A IEC || 500 A690 V AC AC-22A IEC || 600 A CSA || 600 A UL
Connections - Terminals:
lugs-ring terminals 2 34-34 mm² || bars 2 - busbar cross section: 30 x 5 mm
[Ui] Rated Insulation Voltage:
1000 V
Depth:
140 mm
Type Of Operating Handle:
external right side || external frontal
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz
Warranty:
18 months
Network Frequency:
50/60 Hz
[Uimp] Rated Impulse Withstand Voltage:
12 kV IEC
Disconnector Device Type:
non-fusible disconnect switch
Product Certifications:
CSA || UL || CE
