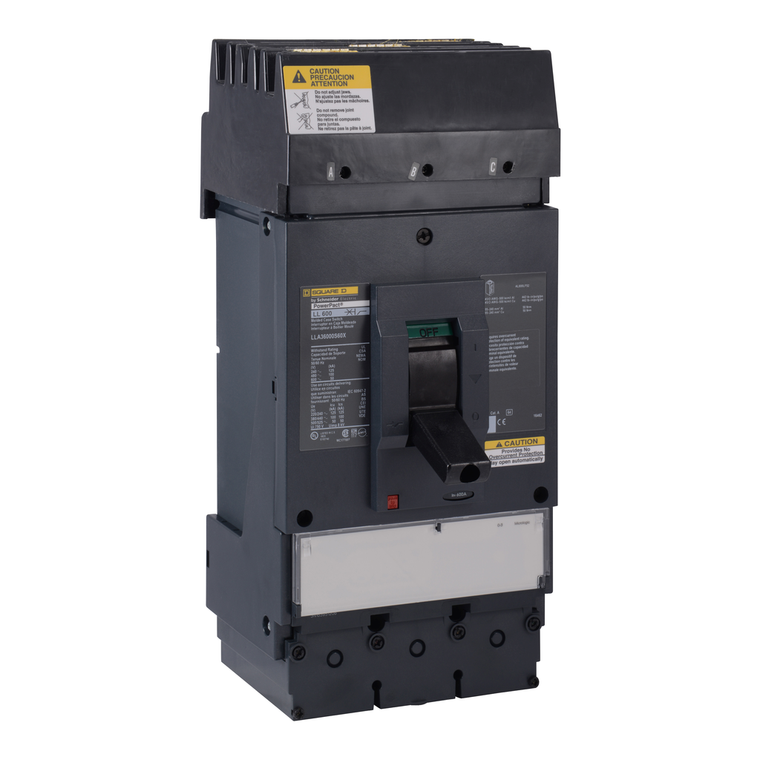

Schneider Electric LLA36000S60X Automatic Molded Case Switch 600V 600A

Schneider Electric LLA36000S60X Automatic Molded Case Switch 600V 600A

Schneider Electric
SKU:
LLA36000S60X
|
UPC:
785901146254
Availability:
Contact us to confirm availability and lead times.
$12,780.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT L-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT L, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. It has an ABC phase connection. PowerPacT L automatic switches comply to UL and CSA standards.
Additional Information
Product Certifications:
CSA || NMX || CCC || UL Listed || IEC || CE
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Tightening Torque:
50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ue] Rated Operational Voltage:
600 V AC
Breaking Capacity Code:
L
Line Rated Current:
600 A
Range Of Product:
PowerPact L
Circularity Profile:
ENVEOLI1406010EN
Height:
13 in
Product Or Component Type:
automatic switch
Trip Unit Technology:
magnetic
Mounting Mode:
I-Line
Environmental Disclosure:
ENVPEP1406010EN
Width:
6 in
Eu Rohs Directive:
Compliant
Magnetic Tripping Current:
6600-6600 A
Electrical Connection:
lugs, load || I-Line connection, line
Pvc Free:
Yes
Warranty:
18 months
Awg Gauge:
2 x AWG 3/0...500 kcmil ( aluminium/copper )
Short-Circuit Withstand:
125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
Mercury Free:
Yes
Poles Description:
3P
Terminal Identifier:
AL600LF52K3
Sustainable Offer Status:
Green Premium product
Depth:
4.75 in
