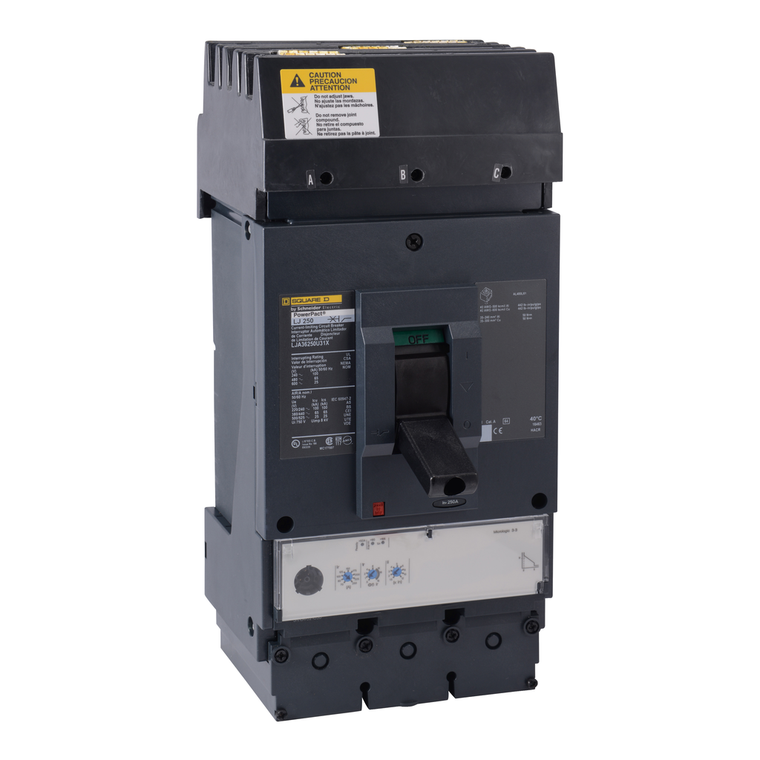

Schneider Electric LLA36250U31X Molded Case Circuit Breaker 600V 250A

Schneider Electric LLA36250U31X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
LLA36250U31X
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$10,213.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Network Frequency:
50/60 Hz
Breaking Capacity Code:
L
Product Name:
PowerPact L
Mounting Mode:
I-Line bracket)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Phase Connection:
ABC
Ambient Air Temperature For Operation:
-2-70 °C
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Tightening Torque:
50-50 N.m 35-300 mm² (AWG 2...600 kcmil) || 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)
Circuit Breaker Application:
HACR rated
Electrical Connection:
I-Line connection, line || lugs, load
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Mounting Support:
bracket
Utilisation Category:
category A
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Storage:
-50-85 °C
Suitability For Isolation:
yes IEC 60947-2
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Communication Interface:
Modbus || Ethernet
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Depth:
110 mm
Awg Gauge:
AWG 2...600 kcmil copper || AWG 2...500 kcmil aluminium
Wire Stripping Length:
31 mm
Ip Degree Of Protection:
front cover IP40
Mounting Height:
6 in
Warranty:
18 months
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
Product Certifications:
UL || CSA || NOM
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Protection Technology:
current limiter
Height:
340 mm
Pvc Free:
Yes
Terminal Identifier:
AL400L61K3
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Trip Unit Name:
MicroLogic 3.3
Poles Description:
3P
Device Application:
distribution
Net Weight:
6.2 kg
Device Short Name:
L-Frame
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circularity Profile:
ENVEOLI2206029EN
Continuous Current Rating:
0.8
Range:
PowerPact
Width:
140 mm
Line Rated Current:
250-250 A
Pollution Degree:
3 IEC 60947-1
Control Type:
toggle
Color:
Black
Environmental Disclosure:
ENVPEP2206029EN
Product Or Component Type:
circuit breaker
