Schneider Electric

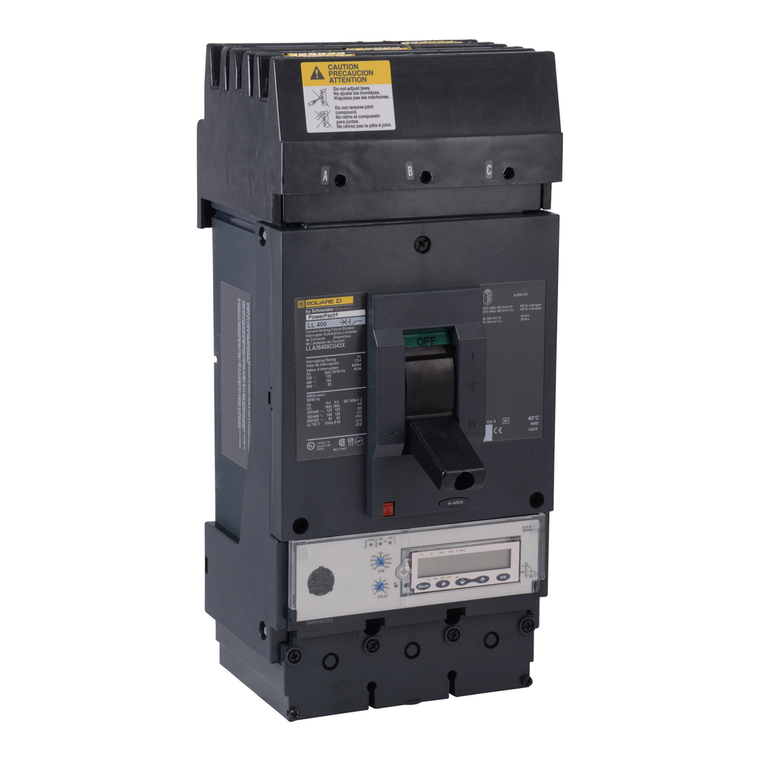

Schneider Electric LLA36600U43X Molded Case Circuit Breaker 600V 600A
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 5.3A trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Terminal Identifier:
- AL600LF52K3
- Mounting Mode:
- I-Line bracket)
- Electrical Connection:
- I-Line connection, line || lugs, load
- Trip Unit Name:
- MicroLogic 5.3 A
- Device Short Name:
- L-Frame
- Protection Technology:
- current limiter
- Rohs Exemption Information:
- Yes
- Width:
- 140 mm
- Wire Stripping Length:
- 31 mm
- Awg Gauge:
- 2 x AWG 2/0...500 kcmil aluminium/copper
- Control Type:
- toggle
- Range:
- PowerPact
- Environmental Disclosure:
- ENVPEP2206029EN
- Circularity Profile:
- ENVEOLI2206029EN
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 110 mm
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Operation:
- -2-70 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- 3 IEC 60947-1
- Network Frequency:
- 50/60 Hz
- Pvc Free:
- Yes
- Mounting Height:
- 6 in
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Product Name:
- PowerPact L
- Communication Interface:
- Modbus || Ethernet
- Utilisation Category:
- category A
- Breaking Capacity Code:
- L
- Net Weight:
- 6.2 kg
- Warranty:
- 18 months
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Mercury Free:
- Yes
- Height:
- 340 mm
- Device Application:
- distribution
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Product Or Component Type:
- circuit breaker
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Ambient Air Temperature For Storage:
- -50-85 °C
- Mounting Support:
- bracket
- Product Certifications:
- UL || CSA || NOM
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Suitability For Isolation:
- yes IEC 60947-2
- Color:
- Black
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Application:
- HACR rated
- Tightening Torque:
- 50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
- Line Rated Current:
- 600-600 A
- Poles Description:
- 3P
- Continuous Current Rating:
- 0.8
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40
- Phase Connection:
- ABC
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 5.3 A, LSI
