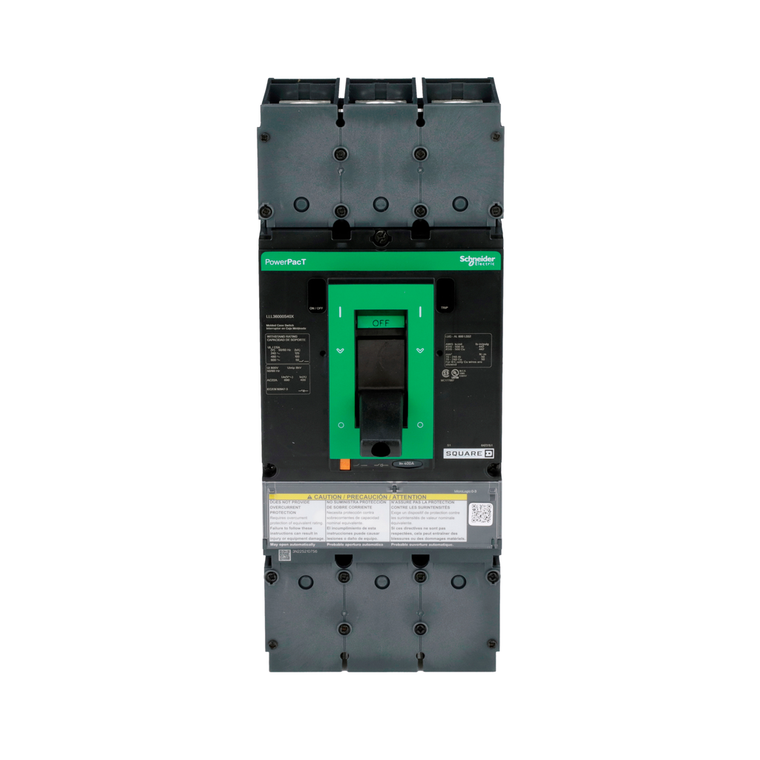

Schneider Electric LLL36000S40X Automatic Molded Case Switch 600V 400A

Schneider Electric LLL36000S40X Automatic Molded Case Switch 600V 400A

Schneider Electric
SKU:
LLL36000S40X
|
UPC:
785901731689
Availability:
Contact us to confirm availability and lead times.
$4,972.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT L-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT L, 400A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL and CSA standards.
Additional Information
Circularity Profile:
ENVEOLI2206029EN
Width:
5.51 in
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP2206029EN
Eu Rohs Directive:
Compliant with Exemptions
Terminal Identifier:
AL600LS52K3
Trip Unit Technology:
magnetic
Circuit Breaker Type:
L-Frame
Warranty:
18 months
Poles Description:
3P
Mounting Mode:
unit mount
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Range Of Product:
PowerPact L
Product Certifications:
CSA || IEC || UL Listed
Depth:
6.61 in
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity Code:
L
Mercury Free:
Yes
Electrical Connection:
lugs, line || lugs, load
Awg Gauge:
x AWG 2/0...500 kcmil ( aluminium/copper )
Line Rated Current:
400 A
Short-Circuit Withstand:
125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Height:
13.38 in
Product Or Component Type:
automatic switch
Magnetic Tripping Current:
4800-4800 A
[Ue] Rated Operational Voltage:
600 V AC
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
