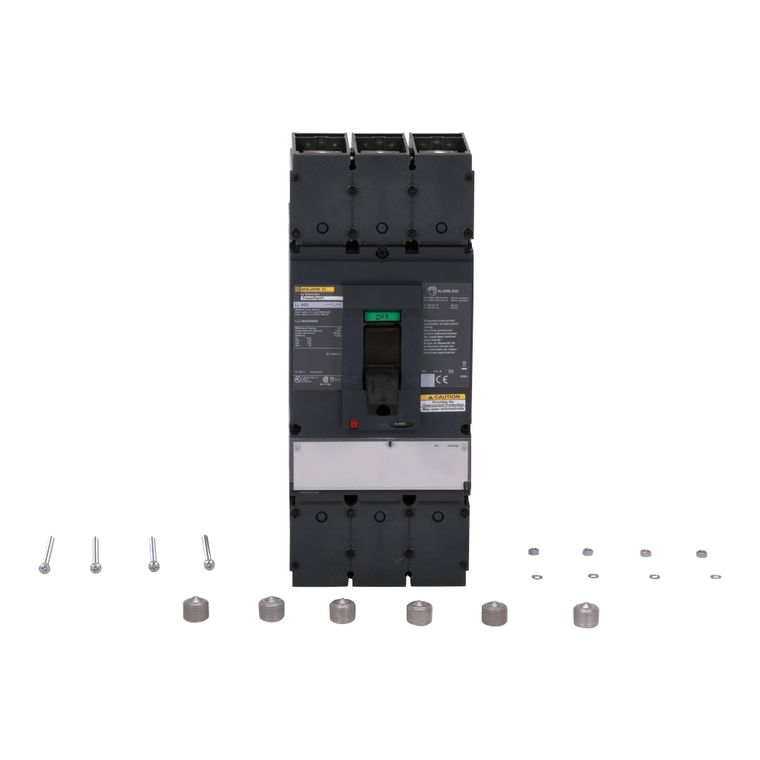

Schneider Electric LLL36000S60X Automatic Molded Case Switch 600V 600A

Schneider Electric LLL36000S60X Automatic Molded Case Switch 600V 600A

Schneider Electric
SKU:
LLL36000S60X
|
UPC:
785901123743
Availability:
Contact us to confirm availability and lead times.
$5,465.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT L-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT L, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL and CSA standards.
Additional Information
Electrical Connection:
lugs, line || lugs, load
Line Rated Current:
600 A
Mercury Free:
Yes
Mounting Mode:
unit mount
Terminal Identifier:
AL600LS52K3
Pvc Free:
Yes
Rohs Exemption Information:
Yes
Magnetic Tripping Current:
6600-6600 A
Breaking Capacity Code:
L
Depth:
6.61 in
Product Certifications:
UL Listed || IEC || CSA
Short-Circuit Withstand:
125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
[Ue] Rated Operational Voltage:
600 V AC
Warranty:
18 months
Awg Gauge:
x AWG 2/0...500 kcmil ( aluminium/copper )
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Circuit Breaker Type:
L-Frame
Height:
13.38 in
Range Of Product:
PowerPact L
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
automatic switch
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Trip Unit Technology:
magnetic
Circularity Profile:
ENVEOLI2206029EN
Sustainable Offer Status:
Green Premium product
Width:
5.51 in
Poles Description:
3P
Environmental Disclosure:
ENVPEP2206029EN
