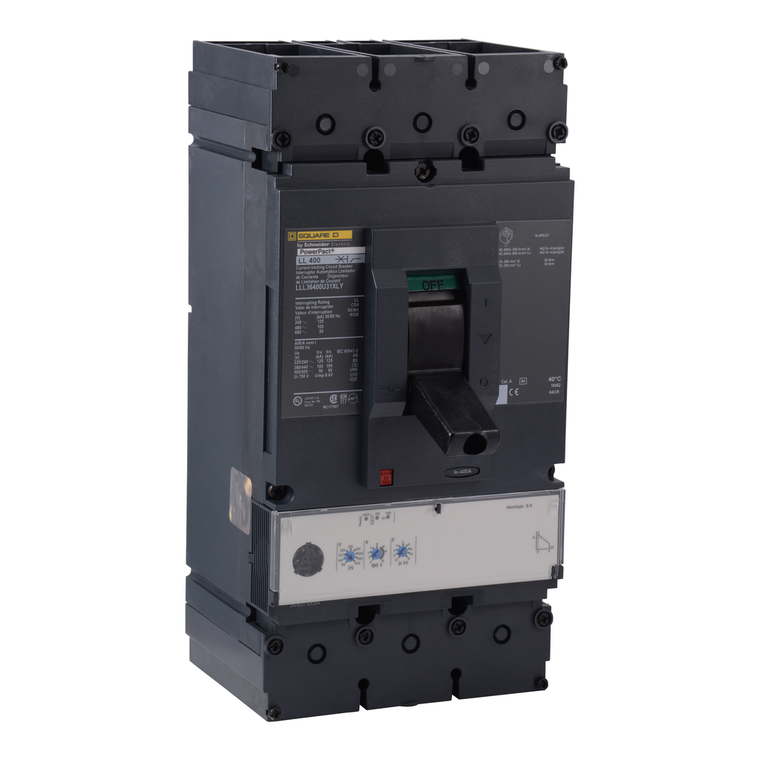

Schneider Electric LLL36400U31X Molded Case Circuit Breaker 600V 400A

Schneider Electric LLL36400U31X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LLL36400U31X
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$9,919.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Mounting Support:
lug
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Network Frequency:
50/60 Hz
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Mercury Free:
Yes
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Breaking Capacity Code:
L
Range:
PowerPact
Warranty:
18 months
Device Short Name:
L-Frame
Product Certifications:
UL || CSA || NOM
Electrical Connection:
lugs, line || lugs, load
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Eu Rohs Directive:
Compliant with Exemptions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
6.2 kg
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Communication Interface:
Modbus || Ethernet
Product Or Component Type:
circuit breaker
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Device Application:
distribution
Mounting Mode:
unit mount lug)
Utilisation Category:
category A
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Environmental Disclosure:
ENVPEP2206029EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Protection Technology:
current limiter
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI2206029EN
Pollution Degree:
3 IEC 60947-1
Product Name:
PowerPact L
Color:
Black
Depth:
110 mm
Terminal Identifier:
AL600LS52K3
Ambient Air Temperature For Storage:
-50-85 °C
Continuous Current Rating:
0.8
Ip Degree Of Protection:
front cover IP40
Rohs Exemption Information:
Yes
Height:
340 mm
Width:
140 mm
Suitability For Isolation:
yes IEC 60947-2
Wire Stripping Length:
31 mm || 61 mm
Circuit Breaker Application:
HACR rated
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Line Rated Current:
400-400 A
Control Type:
toggle
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Poles Description:
3P
Trip Unit Name:
MicroLogic 3.3
