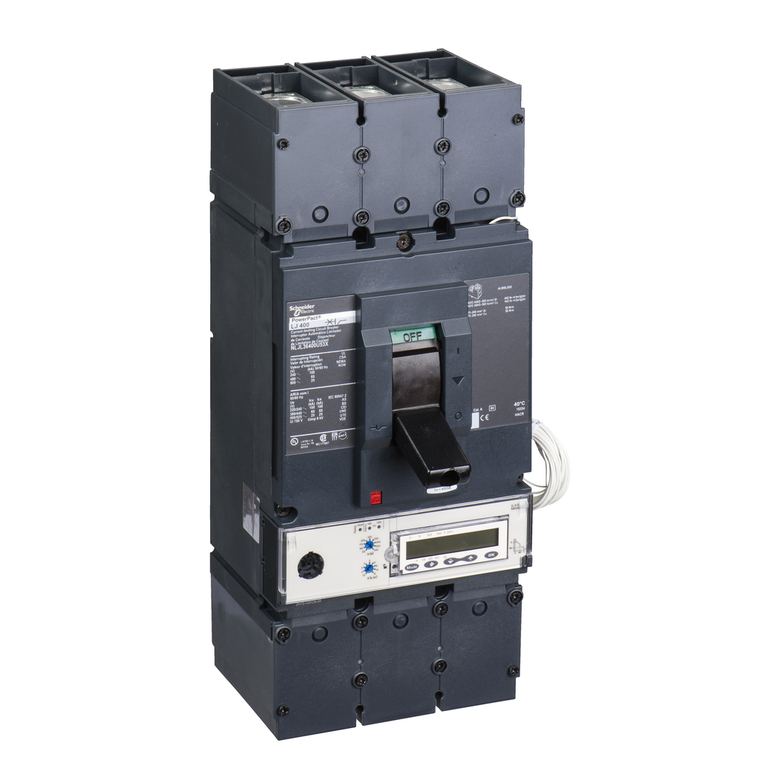

Schneider Electric LLL37040D30 Molded Case Circuit Breaker 500Vdc 500A

(No reviews yet) Write a Review

Write a Review

Schneider Electric LLL37040D30 Molded Case Circuit Breaker 500Vdc 500A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LLL37040D30

UPC:

3.60649E+12

MPN:

Condition:

New

Product Name:

PowerPact L

Mounting Mode:

unit mount lug)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Certifications:

UL || CSA || NOM

Mercury Free:

Yes

Circularity Profile:

ENVEOLI1406010EN

Wire Stripping Length:

31 mm || 61 mm

Tightening Torque:

50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)

Eu Rohs Directive:

Compliant with Exemptions

Depth:

110 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Color:

Black

Ip Degree Of Protection:

front cover IP40

Device Application:

distribution

Electrical Connection:

lugs, line || lugs, load

Awg Gauge:

2 x AWG 2/0...500 kcmil aluminium/copper

Poles Description:

3P

Local Signalling:

switched off (OFF) 1 trip indicator green)

Terminal Identifier:

AL600LS52K3

Mounting Support:

lug

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Breaking Capacity:

125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489

Pvc Free:

Yes

Suitability For Isolation:

yes IEC 60947-2

Product Or Component Type:

circuit breaker

Magnetic Tripping Current:

1000-2000 A

[Ue] Rated Operational Voltage:

500 V DC

Range:

PowerPact

Breaking Capacity Code:

L

Circuit Breaker Application:

HACR rated

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

[Ics] Rated Service Breaking Capacity:

125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Communication Interface:

Modbus || Ethernet

Control Type:

toggle

Ambient Air Temperature For Storage:

-50-85 °C

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Device Short Name:

L-Frame

Ambient Air Temperature For Operation:

-2-70 °C

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

Utilisation Category:

category A

Net Weight:

6.2 kg

Environmental Disclosure:

ENVPEP1406010EN

Trip Unit Technology:

thermal-magnetic

Height:

340 mm

Pollution Degree:

3 IEC 60947-1

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Width:

140 mm
