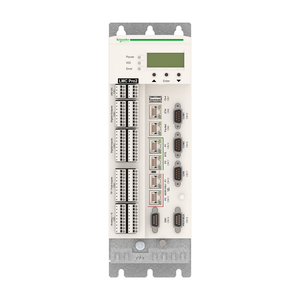

Schneider Electric LMC402CBG10000 Lmc402 16 Axes, Acc. Kit, 2Xom-Ne

(No reviews yet) Write a Review

Write a Review

Schneider Electric LMC402CBG10000 Lmc402 16 Axes, Acc. Kit, 2Xom-Ne

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LMC402CBG10000

UPC:

3606485458342

MPN:

Condition:

New

Availability:

Schneider orders under $1250 will incur a $60 processing fee at checkout

Height:

310 mm

Net Weight:

3.5 kg

Anti Bounce Filtering:

1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input

China Rohs Regulation:

X

Analogue Input Number:

2

Range Of Product:

PacDrive 3

Width:

100 mm

Discrete Output Number:

16 digital output || 2 analog output

Ip Degree Of Protection:

IP20EN/IEC 60529

Maximum Number Of I/O Expansion Module:

2

Number Of Axis:

16

Shock Resistance:

150 m/s² 6 ms operation)EN/IEC 60721-3-3

Power Consumption In W:

36 W

Environmental Disclosure:

ENVPEP1411004EN

Analogue Input Type:

voltage analog input - 10...10 V || current analog input - 20...20 mA

Vibration Resistance:

3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz

Depth:

243 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pvc Free:

Yes

Ambient Air Temperature For Operation:

5-55 °C

Supply:

power supply 24 VDC, <1 A

Mercury Free:

Yes

Discrete Input Number:

20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1

Discrete Input Voltage:

0...6 V || 20...33 V

Discrete Input Current:

5 mA digital input || 5 mA interrupt input || 5 mA touch probe input

Discrete Output Current:

250 mA digital output

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Pollution Degree:

2 IEC 61131-2

Circularity Profile:

ENVEOLI1411004EN

[Us] Rated Supply Voltage:

24 V DC

Product Or Component Type:

motion controller

Discrete Input Voltage Type:

DC

Product Compatibility:

LMC402

Sustainable Offer Status:

Green Premium product

Memory Type:

256 kB NVRAM || 1 GB RAM DDR3L

Rohs Exemption Information:

Yes

Programming Language:

ST (structured text) || LD (ladder) || SFC (sequential function chart) || FBD (function block diagram) || CFC (continuous function chart) || IL (instruction list)

Standards:

EN/IEC 61131-2 || CSA C22.2 No 14 || CSA C22.2 No 274 || UL 508C

Product Certifications:

CSA || cULus || CE || EAC

Maximum Leakage Current:

0.4 mA

Relative Humidity:

5-95 % without condensation

Analogue Input Resolution:

12 bits

Integrated Connection Type:

2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Input Impedance:

100000 Ohm analog input || 500 Ohm
