Schneider Electric

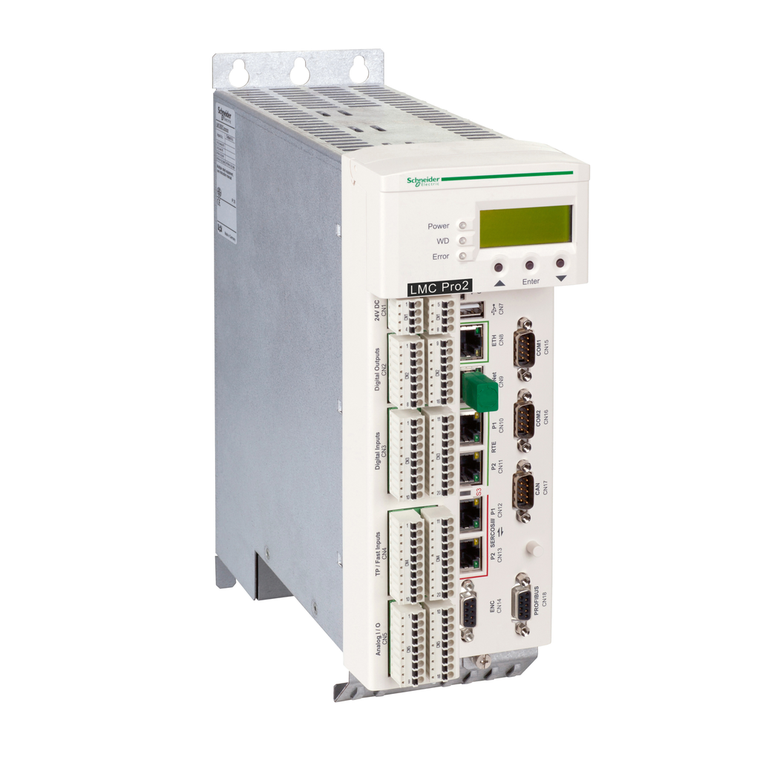

Schneider Electric LMC902CAA10000 Cpu (130 Axis), Basic

SKU:

LMC902CAA10000

UPC:

3606481814036

MPN:

Condition:

New

Product Certifications:

CSA || cULus || EAC || CE

Depth:

243 mm

Circularity Profile:

ENVEOLI1411004EN

Maximum Leakage Current:

0.4 mA

Environmental Disclosure:

ENVPEP1411004EN

Width:

100 mm

Relative Humidity:

5-95 % without condensation

Vibration Resistance:

3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz

Range Of Product:

PacDrive 3

Standards:

CSA C22.2 No 274 || UL 508C || CSA C22.2 No 14 || EN/IEC 61131-2

Product Compatibility:

motion controller

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP20EN/IEC 60529

Memory Type:

256 kB NVRAM || 1 GB RAM DDR3L

Net Weight:

3.5 kg

China Rohs Regulation:

X

Discrete Input Voltage:

0...6 V || 20...33 V

Analogue Input Type:

voltage analog input - 10...10 V || current analog input - 20...20 mA

Product Or Component Type:

motion controller

Integrated Connection Type:

2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link

Analogue Input Number:

2

Discrete Input Number:

20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1

Shock Resistance:

150 m/s² 6 ms operation)EN/IEC 60721-3-3

Maximum Number Of I/O Expansion Module:

2

Supply:

power supply 24 VDC, <1 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pollution Degree:

2 IEC 61131-2

Power Consumption In W:

36 W

Discrete Output Current:

250 mA digital output

Discrete Input Voltage Type:

DC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Height:

310 mm

Input Impedance:

100000 Ohm analog input || 500 Ohm

Mercury Free:

Yes

Number Of Axis:

130

Discrete Output Number:

16 digital output || 2 analog output

Sustainable Offer Status:

Green Premium product

Programming Language:

SFC (sequential function chart) || FBD (function block diagram) || IL (instruction list) || CFC (continuous function chart) || ST (structured text) || LD (ladder)

Ambient Air Temperature For Operation:

5-55 °C

Analogue Input Resolution:

12 bits

Rohs Exemption Information:

Yes

Discrete Input Current:

5 mA digital input || 5 mA interrupt input || 5 mA touch probe input

Anti Bounce Filtering:

1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input

[Us] Rated Supply Voltage:

24 V DC
