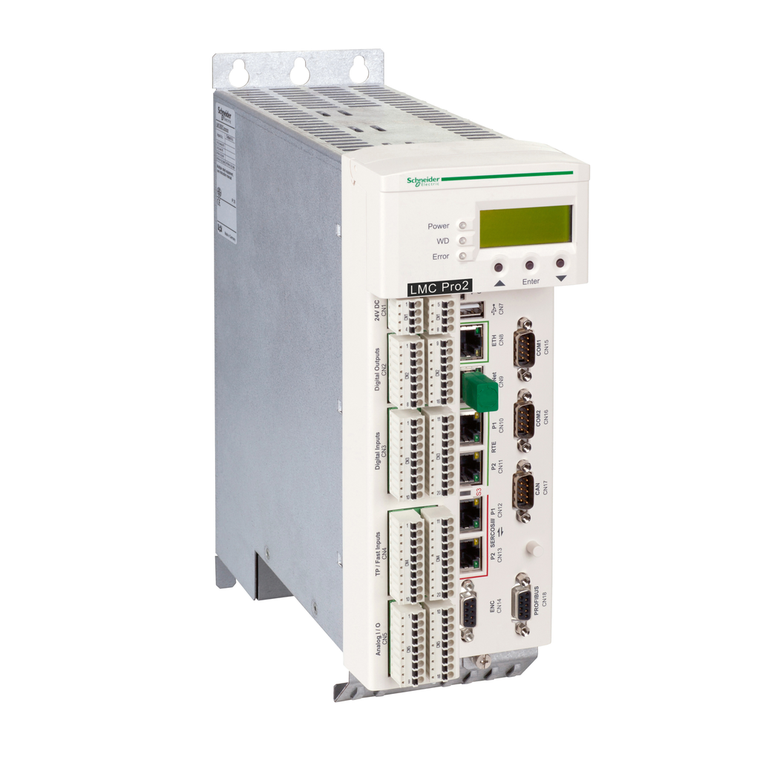

Schneider Electric LMC902CBI10000 Cpu (130 Axis), 1Xom-C+1Xom-Ne

SKU:

LMC902CBI10000

UPC:

3.60648E+12

MPN:

Condition:

New

[Us] Rated Supply Voltage:

24 V DC

Mercury Free:

Yes

Height:

310 mm

Analogue Input Type:

voltage analog input - 10...10 V || current analog input - 20...20 mA

Memory Type:

256 kB NVRAM || 1 GB RAM DDR3L

China Rohs Regulation:

X

Circularity Profile:

ENVEOLI1411004EN

Input Impedance:

100000 Ohm analog input || 500 Ohm

Sustainable Offer Status:

Green Premium product

Shock Resistance:

150 m/s² 6 ms operation)EN/IEC 60721-3-3

Maximum Leakage Current:

0.4 mA

Environmental Disclosure:

ENVPEP1411004EN

Discrete Input Number:

20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1

Product Compatibility:

motion controller

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Analogue Input Resolution:

12 bits

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Integrated Connection Type:

2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link

Width:

100 mm

Product Or Component Type:

motion controller

Discrete Output Current:

250 mA digital output

Discrete Input Current:

5 mA digital input || 5 mA interrupt input || 5 mA touch probe input

Discrete Input Voltage:

20...33 V || 0...6 V

Supply:

power supply 24 VDC, <1 A

Range Of Product:

PacDrive 3

Product Certifications:

EAC || CSA || CE || cULus

Vibration Resistance:

3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz

Pollution Degree:

2 IEC 61131-2

Analogue Input Number:

2

Depth:

243 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Discrete Output Number:

16 digital output || 2 analog output

Ambient Air Temperature For Operation:

5-55 °C

Ip Degree Of Protection:

IP20EN/IEC 60529

Relative Humidity:

5-95 % without condensation

Programming Language:

LD (ladder) || CFC (continuous function chart) || ST (structured text) || IL (instruction list) || SFC (sequential function chart) || FBD (function block diagram)

Discrete Input Voltage Type:

DC

Rohs Exemption Information:

Yes

Number Of Axis:

130

Power Consumption In W:

36 W

Net Weight:

3.5 kg

Anti Bounce Filtering:

1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input

Maximum Number Of I/O Expansion Module:

2

Standards:

CSA C22.2 No 14 || UL 508C || CSA C22.2 No 274 || EN/IEC 61131-2
