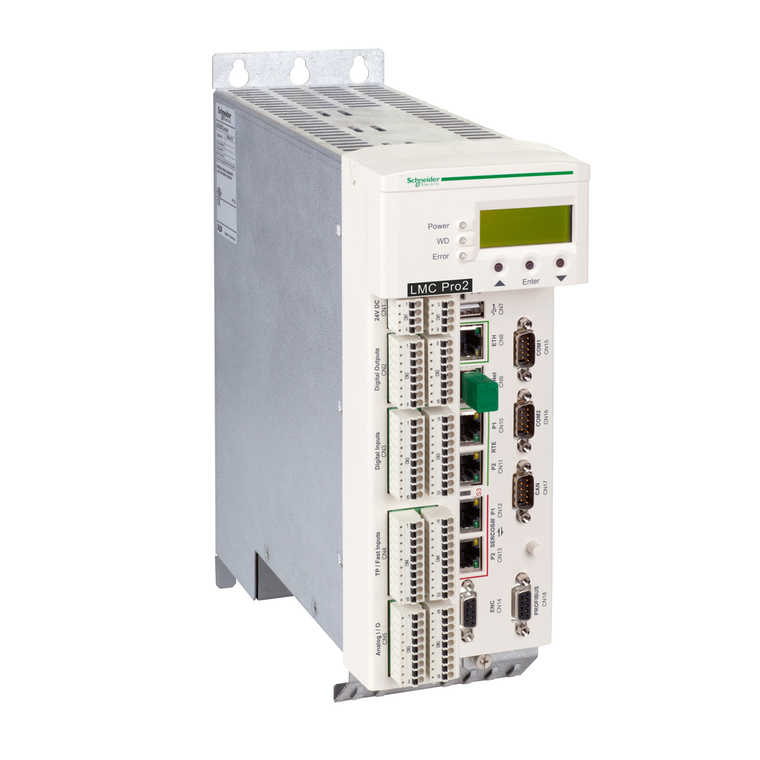

Schneider Electric LMC902CCB10000 Cpu (130 Axis), Om-C+Usv
SKU:
LMC902CCB10000
UPC:
3606481814142
MPN:
Condition:
New
Availability:
Schneider orders under $1250 will incur a $60 processing fee at checkout
Programming Language:
IL (instruction list) || LD (ladder) || FBD (function block diagram) || ST (structured text) || SFC (sequential function chart) || CFC (continuous function chart)
Analogue Input Type:
voltage analog input - 10...10 V || current analog input - 20...20 mA
Product Compatibility:
motion controller
Integrated Connection Type:
2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link
Memory Type:
256 kB NVRAM || 1 GB RAM DDR3L
Range Of Product:
PacDrive 3
Circularity Profile:
ENVEOLI1411004EN
Environmental Disclosure:
ENVPEP1411004EN
Ip Degree Of Protection:
IP20EN/IEC 60529
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Discrete Input Voltage Type:
DC
Anti Bounce Filtering:
1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input
Standards:
CSA C22.2 No 274 || UL 508C || CSA C22.2 No 14 || EN/IEC 61131-2
Net Weight:
3.5 kg
Discrete Input Current:
5 mA digital input || 5 mA interrupt input || 5 mA touch probe input
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Leakage Current:
0.4 mA
Shock Resistance:
150 m/s² 6 ms operation)EN/IEC 60721-3-3
China Rohs Regulation:
X
Input Impedance:
100000 Ohm analog input || 500 Ohm
Supply:
power supply 24 VDC, <1 A
Discrete Input Voltage:
0...6 V || 20...33 V
Analogue Input Resolution:
12 bits
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
5-55 °C
Sustainable Offer Status:
Green Premium product
Discrete Output Number:
16 digital output || 2 analog output
Analogue Input Number:
2
Rohs Exemption Information:
Yes
Height:
310 mm
Vibration Resistance:
3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz
Number Of Axis:
130
Discrete Input Number:
20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1
