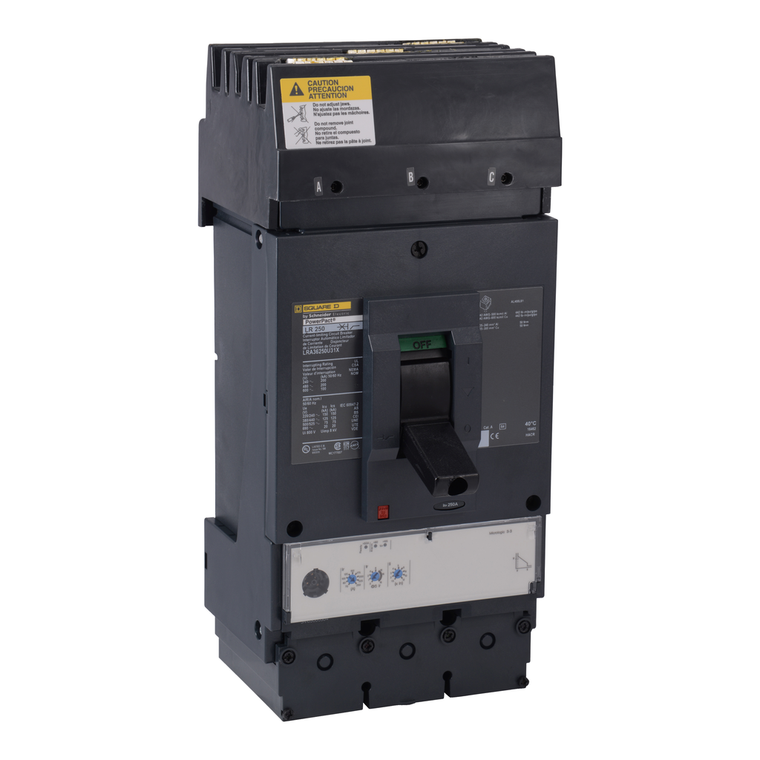

Schneider Electric LRA36400U31X Molded Case Circuit Breaker 600V 400A

Schneider Electric LRA36400U31X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LRA36400U31X
|
UPC:
785901702672
Availability:
Contact us to confirm availability and lead times.
$11,745.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 100kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL600LF52K3
Electrical Connection:
I-Line connection, line || lugs, load
Pvc Free:
Yes
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Product Or Component Type:
circuit breaker
Suitability For Isolation:
yes IEC 60947-2
Height:
340 mm
Mounting Support:
bracket
Product Name:
PowerPact L
Network Frequency:
50/60 Hz
Device Short Name:
L-Frame
Depth:
110 mm
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Sustainable Offer Status:
Green Premium product
Circuit Breaker Application:
HACR rated
Control Type:
toggle
Wire Stripping Length:
31 mm
Tightening Torque:
50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Pollution Degree:
3 IEC 60947-1
Utilisation Category:
category A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Environmental Disclosure:
ENVPEP2206029EN
Ambient Air Temperature For Storage:
-50-85 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Awg Gauge:
AWG 3/0...500 kcmil aluminium/copper
Mounting Height:
6 in
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Device Application:
distribution
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity Code:
R
Color:
Black
[Ics] Rated Service Breaking Capacity:
150 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 690 V AC 50/60 Hz IEC 60947-2
Phase Connection:
ABC
Continuous Current Rating:
0.8
Communication Interface:
Modbus || Ethernet
Trip Unit Name:
MicroLogic 3.3
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Net Weight:
6.2 kg
Width:
140 mm
Ambient Air Temperature For Operation:
-2-70 °C
Line Rated Current:
400-400 A
Poles Description:
3P
Rohs Exemption Information:
Yes
Mounting Mode:
I-Line bracket)
Ip Degree Of Protection:
front cover IP40
Product Certifications:
UL || CSA || NOM
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
Circularity Profile:
ENVEOLI2206029EN
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Breaking Capacity:
200 kA 240 V AC 50/60 Hz UL 489 || 200 kA 480 V AC 50/60 Hz UL 489 || 100 kA 600 V AC 50/60 Hz UL 489
