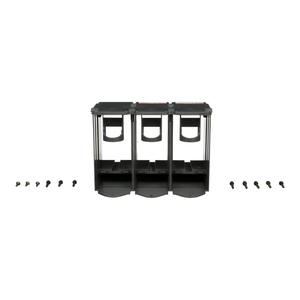

Schneider Electric LTSL3P Cb Long Terminal Shield 3P L-Frame
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This terminal shield is a PowerPacT L circuit breaker accessory. This long shield is for three phase devices. The shield complies with UL, CSA, and IEC standards. This long terminal shield is for a three pole L-Frame breaker. This shield is UL, CSA, and IEC certified.
- Tightening Torque:
- 0.9-1 N.m
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Depth:
- 3.76 in
- Mounting Mode:
- clip-on
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Width:
- 5.51 in
- Poles Description:
- 3P
- Product Certifications:
- UL 508 || CSA C22-2 No 14 || IEC
- Range Of Product:
- PowerPact L
- Height:
- 5.65 in
- Product Or Component Type:
- terminal shield
- Electrical Connection:
- terminal, terminals
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
