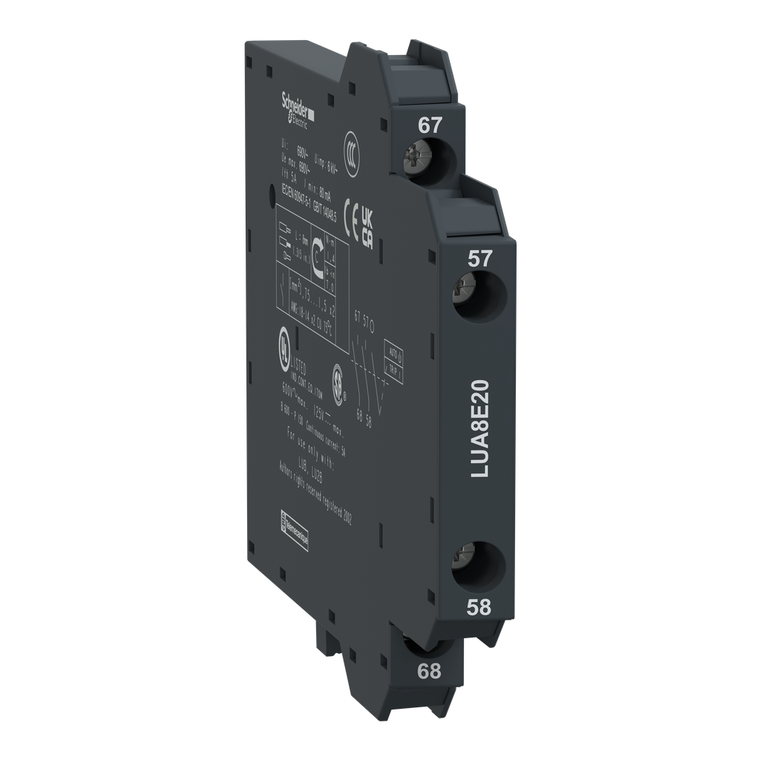

Schneider Electric LUA8E20 Side Mt Contact Block 2 N/O
Schneider Electric
$85.75
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 2NO contacts for open/close status (OF contact), rated up to 5A 250V AC/DC. To be clipped on the left-hand side of the power base. Green Premium compliant (RoHS/REACh).
- Environmental Disclosure:
- ENVPEP111254EN
- Eu Rohs Directive:
- Compliant
- Signalling Function:
- start-stop
- [Ith] Conventional Free Air Thermal Current:
- 0.208333333333333
- Toxic Heavy Metal Free:
- Yes
- [Ue] Rated Operational Voltage:
- 690 V AC || 690 V DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Minimum Switching Voltage:
- 17 V
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Reach Free Of Svhc:
- Yes
- Range:
- TeSys
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile:
- N/A
- Connections - Terminals:
- screw clamp terminals
- Product Or Component Type:
- auxiliary contact
- Auxiliary Contact Composition:
- 2 NO
- Minimum Switching Current:
- 80 mA
- Net Weight:
- 0.048 kg
- Device Short Name:
- LUA8
- Sustainable Offer Status:
- Green Premium product
- Catalog:
- View
- Datasheet:
- View
