Description

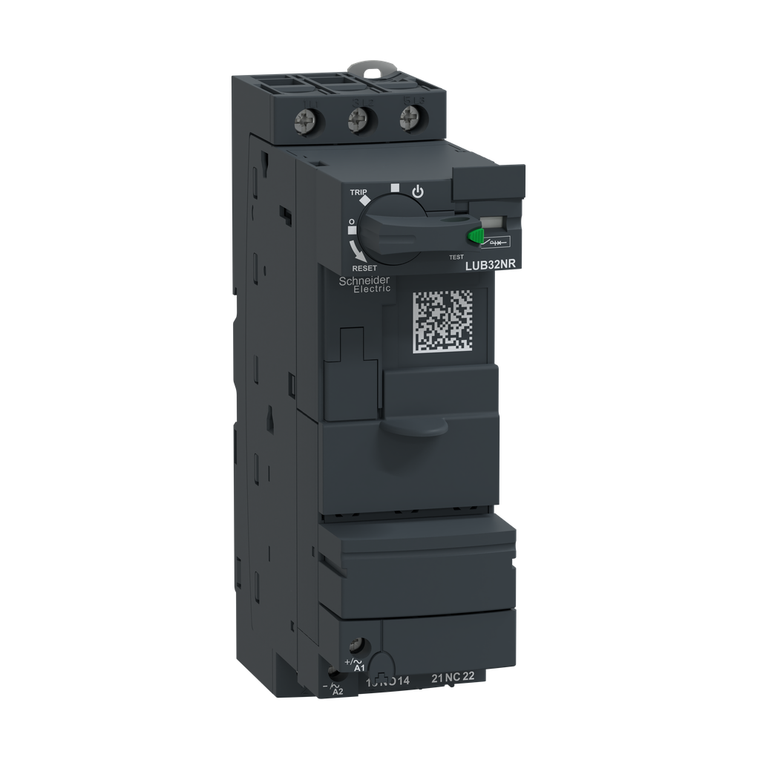

TeSys U motor starters are integrated starters. TeSys U can be configured to fit specific applications. This TeSys U standard power base has 3 poles that are rated 32A at 600V. This power base is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 10HP at 480VAC and 10HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 3HP at 240VAC single phase. Power base is rated NEMA Size 1. Power base has screw clamp terminals which are non-removable. The power base is 6.42 inches tall, 1.77 inches wide and 5.31 inches deep. Power base is UL Listed and CSA Certified. Power base meets the requirements of RoHS/REACh making it a Green Premium product.
