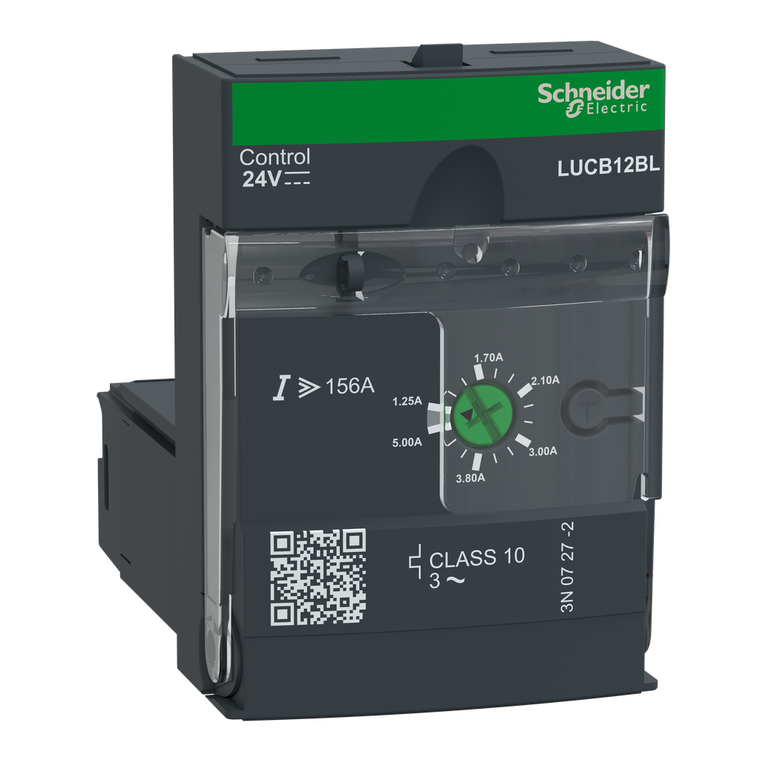

Schneider Electric LUCB12BL Adv Control 3-12A 24Vdc

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LUCB12BL Adv Control 3-12A 24Vdc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LUCB12BL

UPC:

3.38911E+12

MPN:

Condition:

New

Thermal Overload Class:

class 10 40-60 Hz -25-70 °C IEC 60947-6-2 || class 10 40-60 Hz -25-70 °C UL 508

Heat Dissipation:

2-2 W control circuit with LUB12 || 3-3 W control circuit with LUB32 || 3-3 W control circuit with LUB38

Product Specific Application:

basic protection and advanced functions, communication

Device Application:

motor control || motor protection

Range:

TeSys

Shock Resistance:

10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27

Immunity To Radioelectric Fields:

10 V IEC 61000-4-6

Function Available:

manual reset || protection against phase failure and phase imbalance || protection against overload and short-circuit || earth fault protection

Network Frequency:

40...60 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Thermal Protection Adjustment Range:

3-12 A

Reset:

manual reset

Height:

66 mm

Environmental Disclosure:

ENVPEP080204EN

Device Short Name:

LUCB

Tripping Threshold:

14.2 x Ir +/- 20 %

Resistance To Radiated Fields:

10 V/m 3 IEC 61000-4-3

Protective Treatment:

TH IEC 60068

Vibration Resistance:

2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6

Safe Separation Of Circuit:

400 V SELV between the control and auxiliary circuits IEC 60947-1 || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1

Eu Rohs Directive:

Compliant with Exemptions

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-6-2

Typical Current Consumption:

130 mA 24 V DC I maximum while closing with LUB12 || 220 mA 24 V DC I maximum while closing with LUB32 || 220 mA 24 V DC I maximum while closing with LUB38 || 60 mA 24 V DC I rms sealed with LUB12 || 80 mA 24 V DC I rms sealed with LUB32 || 80 mA 24

Fire Resistance:

960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12

Operating Time:

35 ms opening with LUB12 control circuit || 35 ms opening with LUB32 control circuit || 35 ms opening with LUB38 control circuit || 70 ms closing with LUB12 control circuit || 70 ms closing with LUB32 control circuit || 70 ms closing with LUB38 contr

Compatibility Code:

LUCB

Product Compatibility:

power base LUB12 || power base LUB32 || power base LUB38 || power base LUB120 || power base LUB320 || power base LUB380 || reversing contactor breaker LU2B12BL || reversing contactor breaker LU2B32BL || reversing contactor breaker LU2B38BL

Immunity To Voltage Dips:

70 % / 500 ms IEC 61000-4-11

Resistance To Electrostatic Discharge:

8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2

Standards:

EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier

Operating Altitude:

6561.68 ft (2000 m)

Motor Power Kw:

5.5 kW 400...440 V AC 50/60 Hz || 5.5 kW 500 V AC 50/60 Hz || 9 kW 690 V AC 50/60 Hz

[Ue] Rated Operational Voltage:

690 V AC

Load Type:

3-phase motor self-cooled

Fixing Mode:

plug-in front face)

Circularity Profile:

ENVEOLI100414

Width:

45 mm

Control Circuit Voltage Limits:

20...27 V DC 24 V in operation || 14.5 V DC 24 V drop-out

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty:

18 months

Product Name:

TeSys Ultra

Pvc Free:

Yes

[Ui] Rated Insulation Voltage:

690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1

Ip Degree Of Protection:

IP20 front panel and wired terminals IEC 60947-1 || IP20 other faces IEC 60947-1 || IP40 front panel outside connection zone IEC 60947-1

Phase Failure Sensitivity:

yes

Product Certifications:

CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine

Immunity To Microbreaks:

3 ms

Range Of Product:

TeSys Ultra

[Uc] Control Circuit Voltage:

24 V DC

Resistance To Fast Transients:

2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4

Utilisation Category:

AC-41 || AC-43 || AC-44

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

-25-70 °C

Ambient Air Temperature For Storage:

-40-85 °C

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Product Or Component Type:

advanced control unit

Depth:

60 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Halogen Content Performance:

Halogen free plastic parts product
