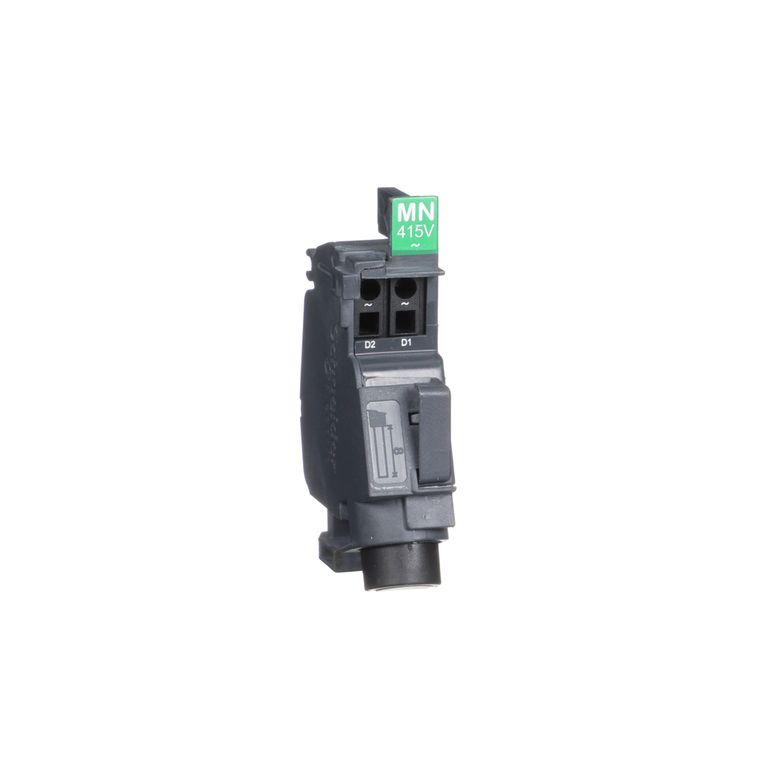

Schneider Electric LV426806 Coil Mn Ac 380
Schneider Electric
$620.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LV426806 Coil Mn Ac 380
This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 380/415 VAC 50 Hz rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
- Voltage Release Type:
- opening coil || undervoltage release
- Environmental Disclosure:
- ENVPEP2311042EN
- Sustainable Offer Status:
- Green Premium product
- [Uc] Control Circuit Voltage:
- 380...415 V AC 50 Hz
- Eu Rohs Directive:
- Compliant with Exemptions
- Device Short Name:
- MN
- Auxiliary Connection Terminal:
- spring
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Control Type:
- standard
- Device Application:
- control
- Threshold Tripping Voltage:
- 0.35...0.7 x Un opening || 0.85 x Un closing
- Range Of Product:
- ComPacT NSXm new generation
- Range Compatibility:
- ComPact ComPacT NSXm new generation || ComPact ComPact NSXm || PowerPact PowerPact B
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Circularity Profile:
- ENVEOLI2311042EN
- Product Or Component Type:
- voltage release
- Rohs Exemption Information:
- Yes
- Response Time:
- < 50 ms
- Range:
- ComPact
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Brochure:
- View
- Datasheet:
- View
