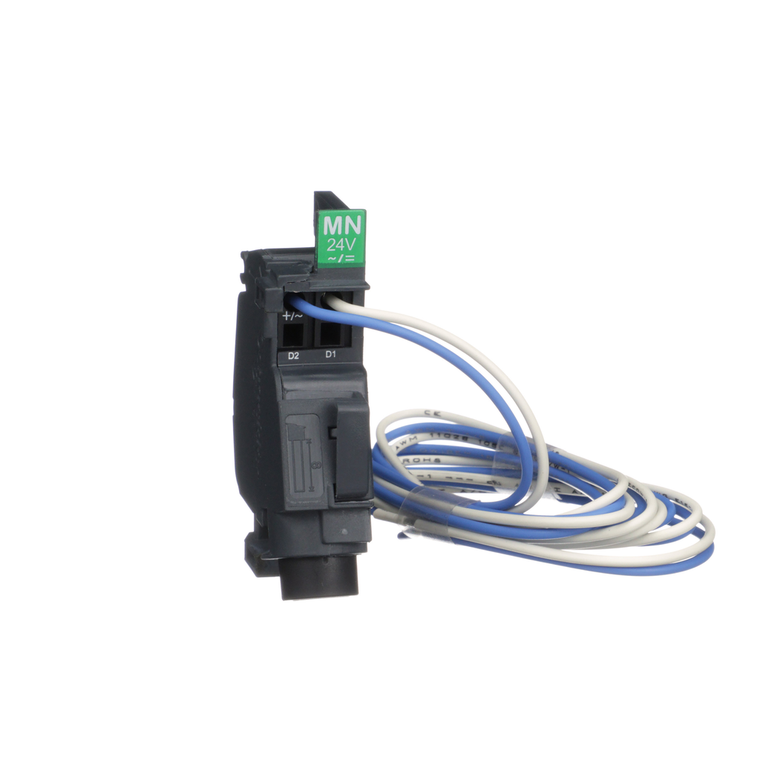

Schneider Electric LV426821 Coil Mn Pre Wired Ac Dc

Schneider Electric LV426821 Coil Mn Pre Wired Ac Dc

Schneider Electric
SKU:
LV426821
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$716.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This pre-wired MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 24 VAC 50/60Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Additional Information
Device Application:
control
[Uc] Control Circuit Voltage:
24 V AC 50/60 Hz || 24 V DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Environmental Disclosure:
ENVPEP2311042EN
Wire Stripping Length:
8 mm
Mercury Free:
Yes
Auxiliary Connection Terminal:
pre-wired 0-0.8 mm² AWG 18)stranded copper
Threshold Tripping Voltage:
0.35...0.7 x Un opening || 0.85 x Un closing
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Length:
1 m
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Device Short Name:
MN
Range:
ComPact
Range Compatibility:
ComPact ComPacT NSXm new generation || ComPact ComPact NSXm || PowerPact PowerPact B
Range Of Product:
ComPacT NSXm new generation
Eu Rohs Directive:
Compliant with Exemptions
Response Time:
< 50 ms
Voltage Release Type:
opening coil || undervoltage release
Circularity Profile:
ENVEOLI2311042EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
voltage release
