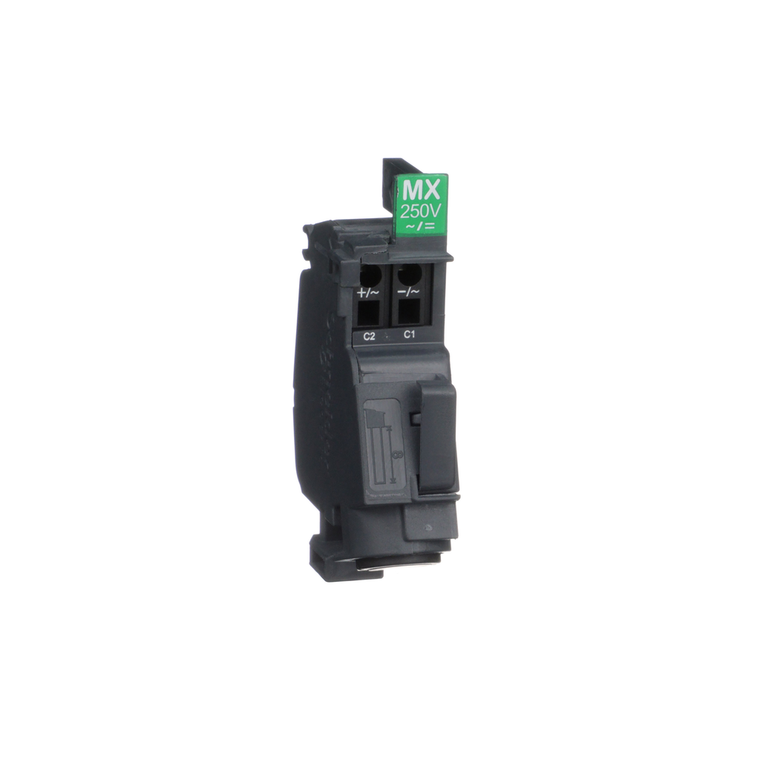

Schneider Electric LV426844 Coil Mx Ac 208-240 V 50/60 Hz
This standard MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 220/240VAC 50Hz, 208/240/277VAC 60Hz or 250VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
- Circularity Profile:
- ENVEOLI2311043EN
- Product Or Component Type:
- voltage release
- Response Time:
- < 50 ms
- Voltage Release Type:
- opening coil || shunt trip release
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Control Type:
- standard
- [Uc] Control Circuit Voltage:
- 220...240 V AC 50 Hz || 208...240 V AC 60 Hz || 277 V AC 60 Hz || 250 V DC
- Device Short Name:
- MX
- Impulse Duration:
- >= 20 ms
- Range Compatibility:
- ComPact ComPacT NSXm new generation || ComPact ComPact NSXm || PowerPact PowerPact B
- Range Of Product:
- ComPacT NSXm new generation
- Control Signal Type:
- impulse || maintained
- Auxiliary Connection Terminal:
- spring
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Application:
- control
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Threshold Tripping Voltage:
- 0.7 Un opening
- Range:
- ComPact
- Environmental Disclosure:
- ENVPEP2311043EN
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Compliant with Exemptions
