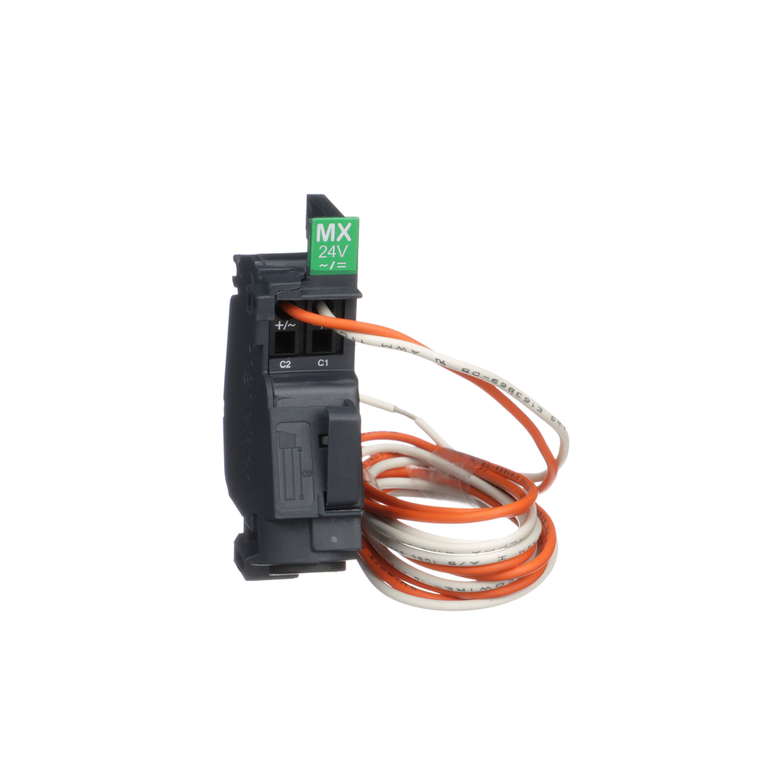

Schneider Electric LV426861 Coil Mx Pre-Wired Ac 24 V 50/60 Hz
Schneider Electric
$716.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 24 VAC 50/60Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
- Eu Rohs Directive:
- Compliant with Exemptions
- Length:
- 1 m
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Of Product:
- ComPacT NSXm new generation
- Threshold Tripping Voltage:
- 0.7 Un opening
- Environmental Disclosure:
- ENVPEP2311043EN
- Impulse Duration:
- >= 20 ms
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz || 24 V DC
- Auxiliary Connection Terminal:
- pre-wired 0-0.8 mm² AWG 18)stranded copper
- Control Type:
- standard
- Device Application:
- control
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Response Time:
- < 50 ms
- Wire Stripping Length:
- 8 mm
- Range Compatibility:
- ComPact ComPacT NSXm new generation || ComPact ComPact NSXm || PowerPact PowerPact B
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mercury Free:
- Yes
- Voltage Release Type:
- opening coil || shunt trip release
- Control Signal Type:
- impulse || maintained
- Range:
- ComPact
- Product Or Component Type:
- voltage release
- Device Short Name:
- MX
- Circularity Profile:
- ENVEOLI2311043EN
