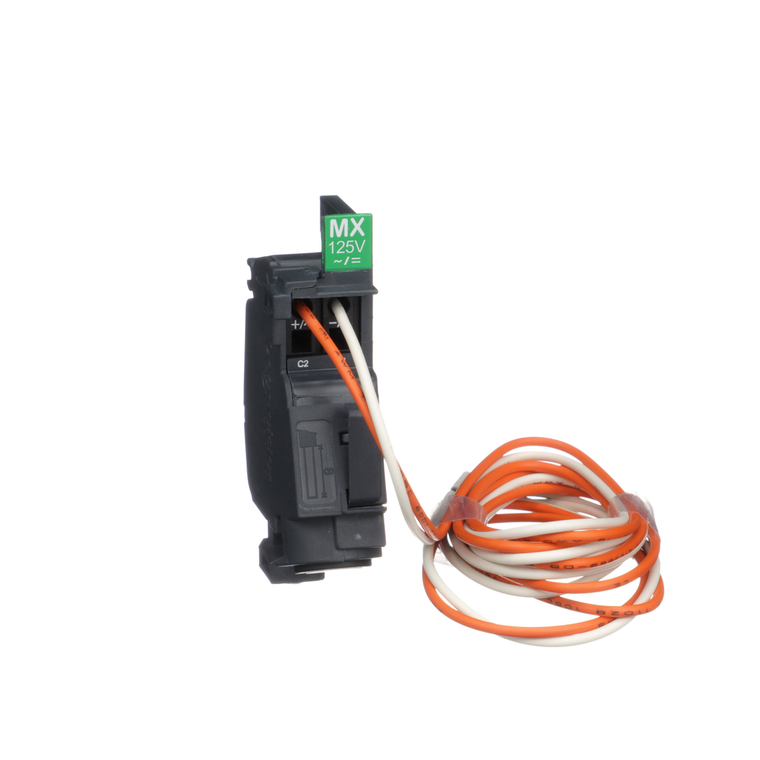

Schneider Electric LV426863 Coil Mx Pre-Wired Ac 110-130 V 50/60 Hz

Schneider Electric LV426863 Coil Mx Pre-Wired Ac 110-130 V 50/60 Hz

Schneider Electric
SKU:
LV426863
|
UPC:
3606485413198
Availability:
Factory stock
$484.68
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 110/130 VAC 50/60Hz or 125VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Additional Information
Response Time:
< 50 ms
Device Application:
control
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
voltage release
Environmental Disclosure:
ENVPEP2311043EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Short Name:
MX
Auxiliary Connection Terminal:
pre-wired 0-0.8 mm² AWG 18)stranded copper
Circularity Profile:
ENVEOLI2311043EN
Mercury Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range:
ComPact
Eu Rohs Directive:
Compliant with Exemptions
Voltage Release Type:
opening coil || shunt trip release
Rohs Exemption Information:
Yes
Threshold Tripping Voltage:
0.7 Un opening
Range Compatibility:
ComPact ComPacT NSXm new generation || ComPact ComPact NSXm || PowerPact PowerPact B
Wire Stripping Length:
8 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Control Type:
standard
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Uc] Control Circuit Voltage:
110...130 V AC 50/60 Hz || 125 V DC
Control Signal Type:
maintained || impulse
Impulse Duration:
>= 20 ms
Range Of Product:
ComPacT NSXm new generation
Length:
1 m
