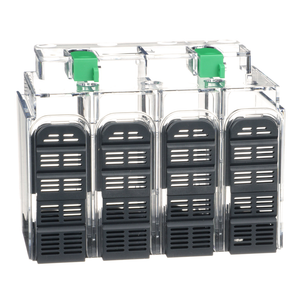

Schneider Electric LV426913 Long Terminal Shield 4P Iec/Ul Dis And V
Schneider Electric

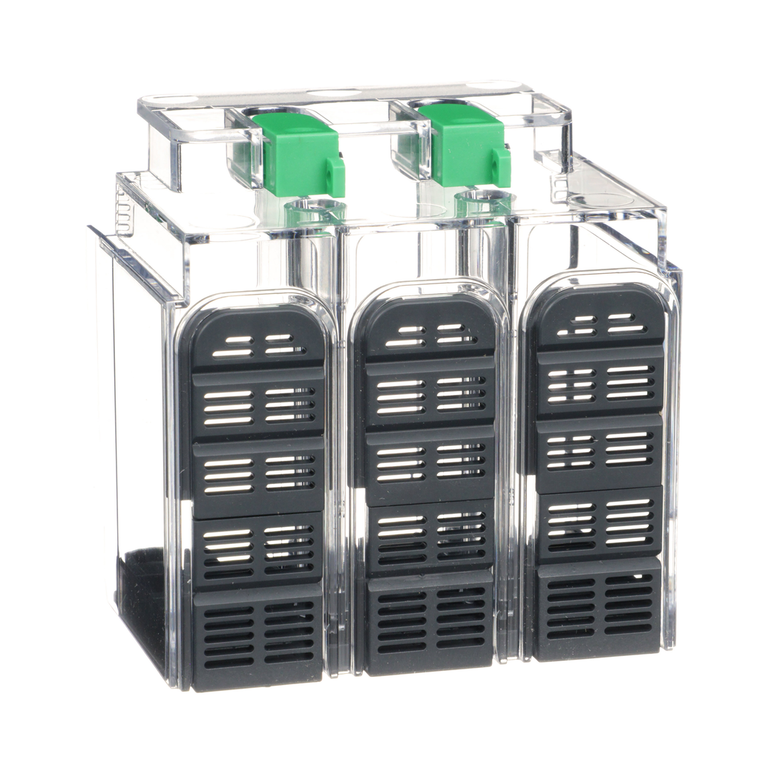

Schneider Electric LV426912 Long Terminal Shield 3P Iec/Ul Dis
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
It is a long terminal shield for 3 poles Compact NSXm and PowerPact B devices. It is designed for protection against direct contact with power circuit The long terminal shield is used for connection with cables or insulated bares. It can be mounted upstream and downstream the circuit breaker. This part provides IP 40 degree of protection and IK 07 mechanical impact protection. It can be mounted after the product installation and can be removed and put in place even if there are auxiliary wires.
- Location Of Connection:
- upstream || downstream
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- ComPact ComPact NSXm || PowerPact PowerPact B
- Mercury Free:
- Yes
- Accessory / Separate Part Type:
- insulation accessories
- Poles Description:
- 3P
- Product Or Component Type:
- long terminal shield
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Quantity Per Set:
- set of 1
- Connection Pitch:
- 35 mm
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
