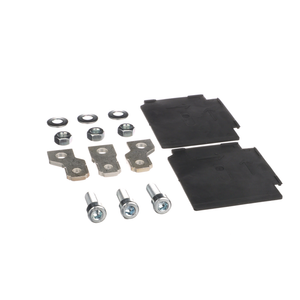

Schneider Electric LV426940 Spreader 3P Iec Dis And Gv4
Schneider Electric
Schneider Electric LV426941 Spreader 4P Iec Dis And Vigi
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

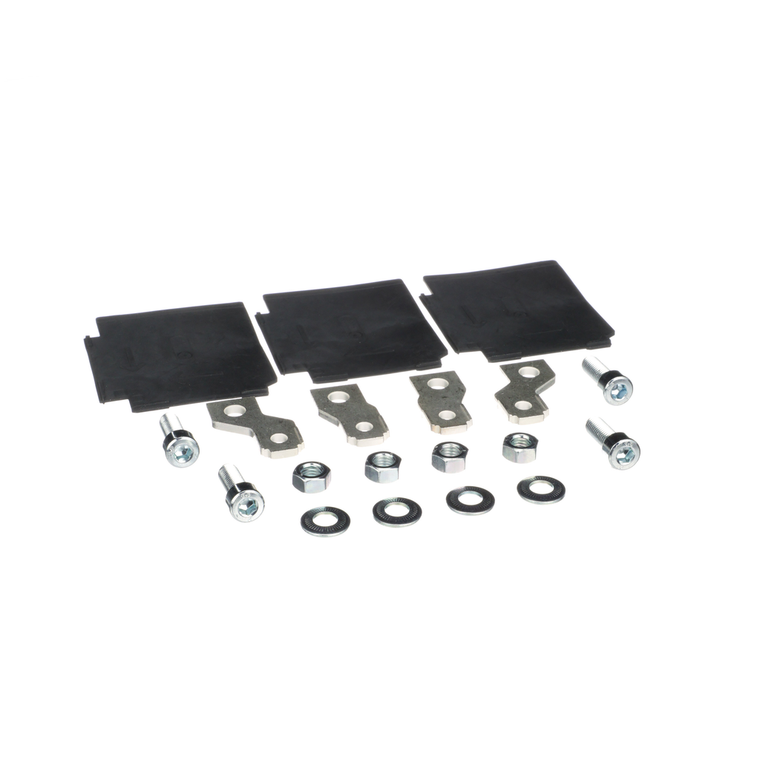

It is a set of 4 spreaders used to increase the pitch between the poles from 21 mm to 35 mm. It is used on compact NSXm and PowerPact B devices. Bares and cable lugs are attached to the end of the spreaders. These accessories are supplied with M8 screws for power connection and 3 interphase barriers.
- Location Of Connection:
- upstream || downstream
- Quantity Per Set:
- set of 1
- Reach Free Of Svhc:
- Yes
- Mounting Mode:
- fixed
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Poles Description:
- 4P
- Accessory / Separate Part Type:
- connection accessories
- Toxic Heavy Metal Free:
- Yes
- Connection Pitch:
- 35 mm
- Product Or Component Type:
- spreader
- Range Compatibility:
- PowerPact PowerPact B || ComPact ComPact NSXm
- Conductor Material:
- copper
- Line Rated Current:
- 160-160 A
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Tightening Torque:
- 9-9 N.m upstream || 9-9 N.m downstream
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant
- Connections - Terminals:
- crimp lug upstream) || crimp lug downstream)
- Provided Equipment:
- interphase barriers
- Brochure:
- View
- Datasheet:
- View
