Schneider Electric LV426966 Cb Mechanical Lug Kit Al (2 Pc)

Schneider Electric LV426966 Cb Mechanical Lug Kit Al (2 Pc)

Schneider Electric
SKU:
LV426966
|
UPC:
3606481154453
Availability:
Contact us to confirm availability and lead times.
$51.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

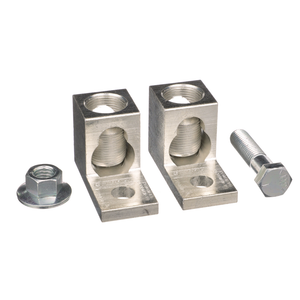

It is a set of 2 aluminium mechanical connectors for Compact NSXm and PowerPact B devices. These lugs are made of tin-plated aluminium an are suitable for copper and aluminium conductors. They are fastened to the terminals with lug mounting screws inserted from the bottom. The current rating is from 15A to 125A for copper wires (2.5 - 6 mm²), and the torque is 4 N.m +/- 0.4. For aluminium wires, the current rating is from 15A to 125 A (10 - 70 mm²), and the torque is 5.6 N.m +/- 0.6.
Additional Information
Mercury Free:
Yes
Quantity Per Set:
set of 2
Halogen Content Performance:
Halogen free product
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Compliant with Exemptions
Accessory / Separate Part Type:
connection kit
Circularity Profile:
N/A
Mounting Mode:
fixed
Conductor Material:
copper || aluminium
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP1610005EN
Connections - Terminals:
screw terminal 2.5-70 mm² AWG 14...AWG 2/0)
Product Or Component Type:
mechanical lug
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
16-125 A
Rohs Exemption Information:
Yes
