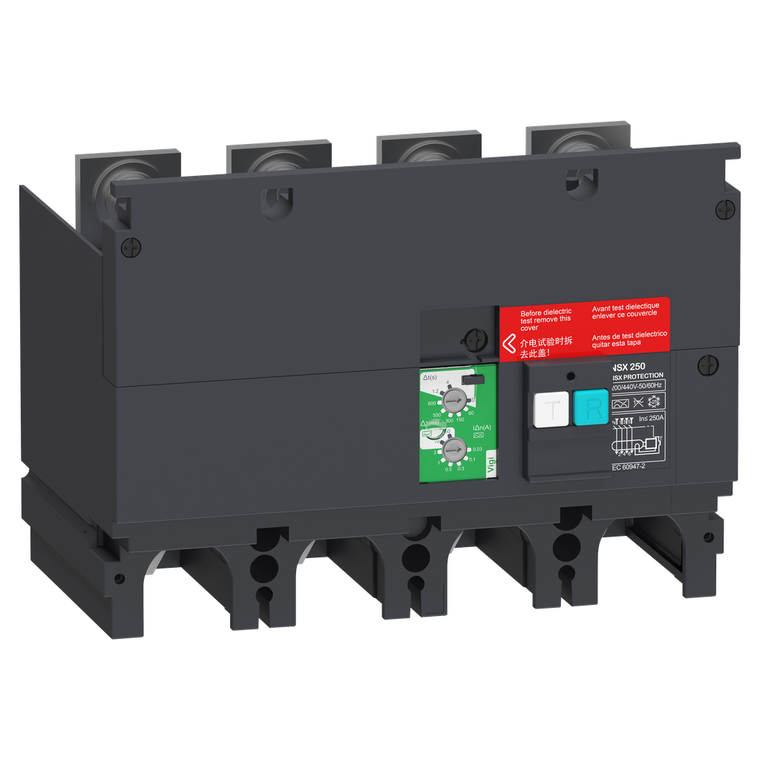

Schneider Electric LV429493 Vigi 200-440V 4P For Nsx250
This is a Vigi add-on module for ComPact NSX 250 that provides an earth-leakage protection. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
- Electrical Shock Protection Class:
- class II
- Range Of Product:
- ComPacT NSX100...250 new generation || ComPact NSX100...250
- Network Type:
- AC
- [Ît] Residual Earth-Leakage Time Delay Adjustment:
- 0-0 ms || 60-60 ms || 150-150 ms || 300-300 ms || 500-500 ms || 800-800 ms || 1.2-1.2 s || 4-4 s
- Overvoltage Category:
- IV
- Standards:
- IEC 60947-2
- Environmental Disclosure:
- ENVPEP2309055EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI2309055EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rohs Exemption Information:
- Yes
- Earth-Leakage Protection Class:
- class A || class AC
- Line Rated Current:
- 250 A
- Device Application:
- wiring
- Earth-Leakage Sensitivity:
- 0.03 A class A || 0.1 A class A || 0.3 A class A || 0.5 A class A || 1 A class A || 3 A class A || 10 A class AC || 30 A class AC
- Poles Description:
- 4P
- Residual Earth-Leakage Sensitity Adjustment Type:
- adjustable
- Eu Rohs Directive:
- Compliant with Exemptions
- Mercury Free:
- Yes
- Maximum Breaking Time:
- 800 ms
- Product Or Component Type:
- Vigi add-on
- Range Compatibility:
- ComPacT new generation ComPacT NSX250 new generation circuit breaker || ComPact ComPact NSX250 circuit breaker
- Device Short Name:
- VigiPacT
- Earth-Leakage Protection:
- with
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- 200...440 V AC 50/60 Hz IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Network Frequency:
- 50/60 Hz
- Residual Earth-Leakage Time Delay Adjustment Type:
- adjustable
