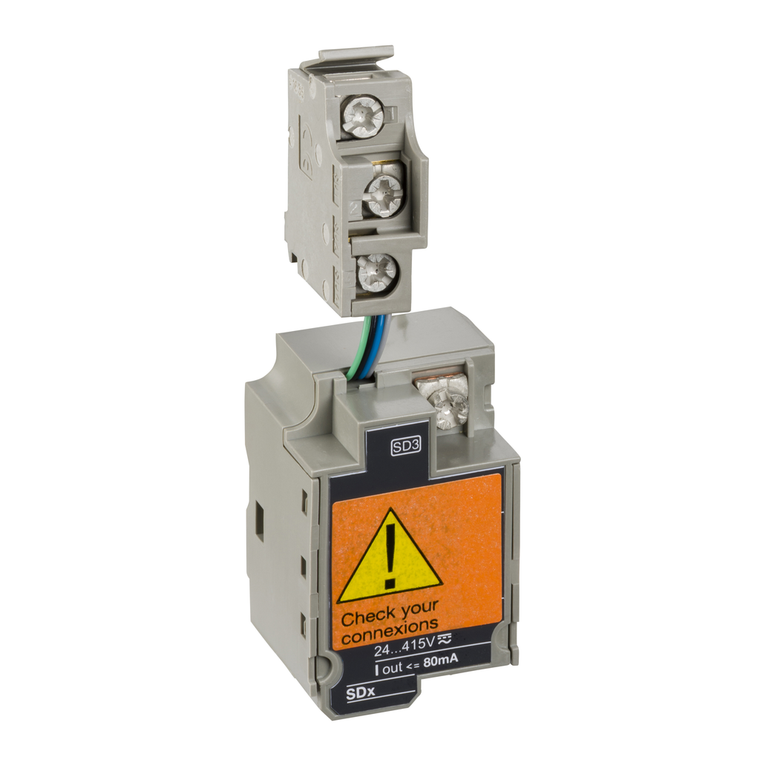

Schneider Electric LV429532 Sdx Output Modules Trip Unit Accessory

Schneider Electric LV429532 Sdx Output Modules Trip Unit Accessory

Schneider Electric
SKU:
LV429532
|
UPC:
3606480020476
$599.40
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
LV429532 is a trip unit accessory for SDX output module , NSX100-250 / NSX400-630. This trip unit is for Micrologic 2.0,Micrologic 5.0,Micrologic 6.0 with a supply voltage 24-415V DC. It uses the sensors and processing capacity of the Micrologic trip unit. It is easy to use and requires no special software or settings. It is immediately operational when connected to the circuit breaker by a ULP cord. It also provides monitoring and control with the use of the I/O application module, the motor mechanism module, or the circuit breaker communication module.
Additional Information
Maximum [In] Rated Current:
0.08 A
Range Of Product:
ComPact NSX400...630 || ComPact NSX100...250
Mercury Free:
Yes
[Us] Rated Supply Voltage:
24...415 V AC 50/60 Hz || 24...415 V DC
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Accessory / Separate Part Category:
relay accessory
Range:
ComPact
Product Or Component Type:
SDX output module
Range Compatibility:
ComPact ComPact NSX circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Trip Unit Name:
MicroLogic 2.2 || MicroLogic 2.3 || MicroLogic 4.2 || MicroLogic 4.3 || MicroLogic 5.2 A || MicroLogic 5.2 E || MicroLogic 5.3 A || MicroLogic 5.3 E || MicroLogic 6.2 A || MicroLogic 6.2 E || MicroLogic 6.3 A || MicroLogic 6.3 E || MicroLogic 7.2 E |
Warranty:
18 months
Device Application:
control
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
SDX output modules
Datasheet:
View
