Schneider Electric LV432480 4 1X 35-300Mm2 Connectors Ph Barriers I

Schneider Electric LV432480 4 1X 35-300Mm2 Connectors Ph Barriers I

Schneider Electric
SKU:
LV432480
|
UPC:
3606480019388
Availability:
Contact us to confirm availability and lead times.
$249.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

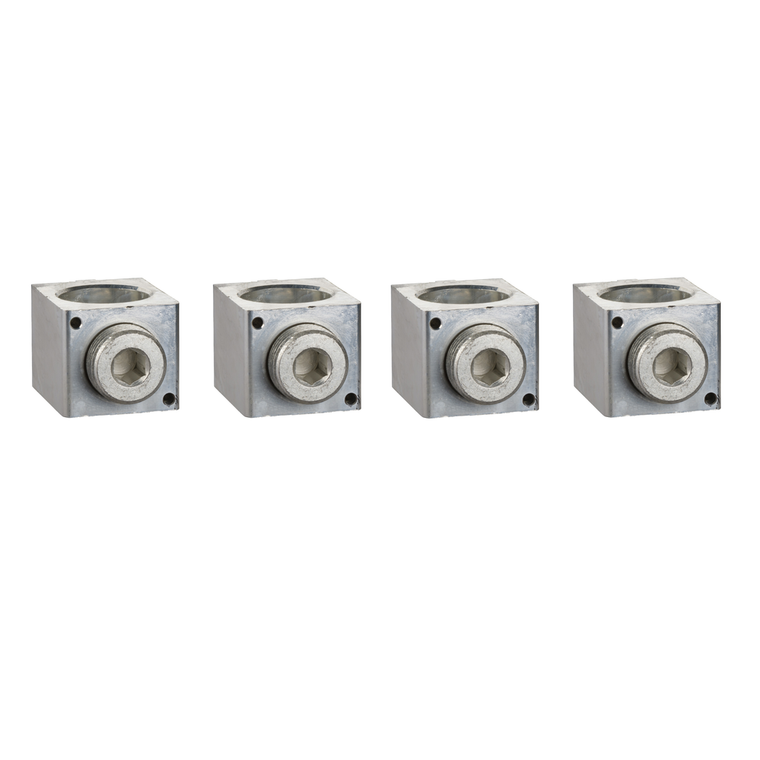

These accessories are aluminium bare cable connectors for Compact NSX 400/630 and EasyPact CVS 400/630. These connectors can receive 1 copper or aluminium cables from 35mm² to 300mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 630 A. They are sold by set of 4 parts.
Additional Information
Mercury Free:
Yes
Warranty:
18 months
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
bare cable connector
Line Rated Current:
630-630 A
Accessory / Separate Part Category:
connection accessory
Toxic Heavy Metal Free:
Yes
Connections - Terminals:
screw terminal1 35-300 mm²
Eu Rohs Directive:
Compliant
Poles Description:
4P
Range Compatibility:
ComPacT new generation ComPacT NSX400 new generation || ComPacT new generation ComPacT NSX630 new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact Compact NSX400 || ComPact Compact NSX630 || ComPact Compact NSX400 DC || C
Quantity Per Set:
set of 4
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Conductor Material:
aluminium
