Schneider Electric LV432482 4 2X 35-240Mma Connectors Ph Barriers
Schneider Electric
$414.90
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LV432482 4 2X 35-240Mma Connectors Ph Barriers

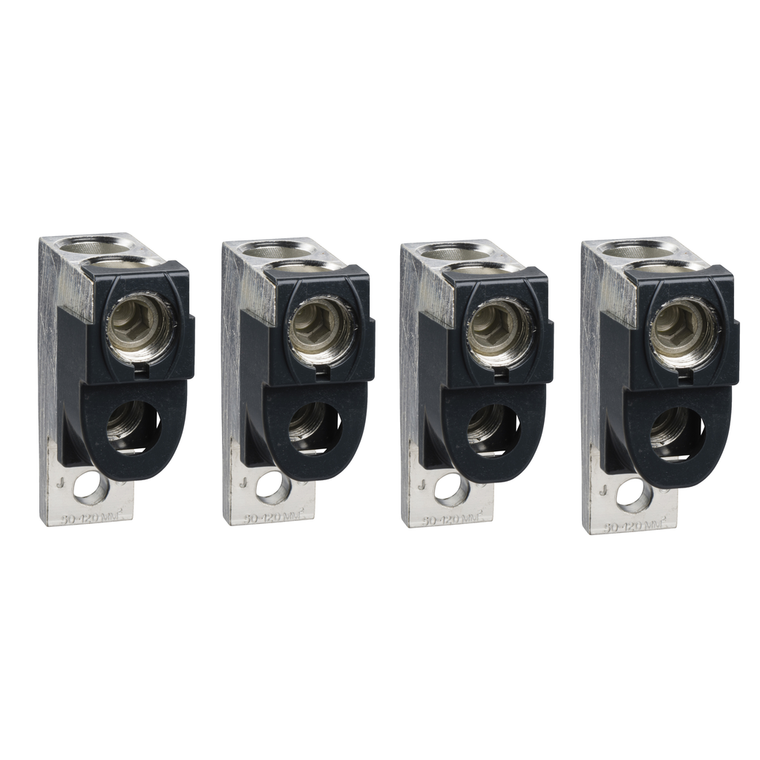

These accessories are aluminium bare cable connectors for Compact NSX 400/630 and EasyPact CVS 400/630. These connectors can receive 2 copper or aluminium cables from 35mm² to 240mm². The connectors are screwed directly on the device terminals or right angle terminal extensions. The rated current is up to 630 A. They are sold by set of 4 parts.
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Compliant
- Product Or Component Type:
- bare cable connector
- Conductor Material:
- aluminium
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Poles Description:
- 4P
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Quantity Per Set:
- set of 4
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Line Rated Current:
- 630-630 A
- Connections - Terminals:
- screw terminal2 35-240 mm²
- Reach Free Of Svhc:
- Yes
- Range Compatibility:
- ComPacT new generation ComPacT NSX400 new generation || ComPacT new generation ComPacT NSX630 new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact Compact NSX400 || ComPact Compact NSX630 || ComPact Compact NSX400 DC || C
- Accessory / Separate Part Category:
- connection accessory
- Mercury Free:
- Yes
- Datasheet:
- View
