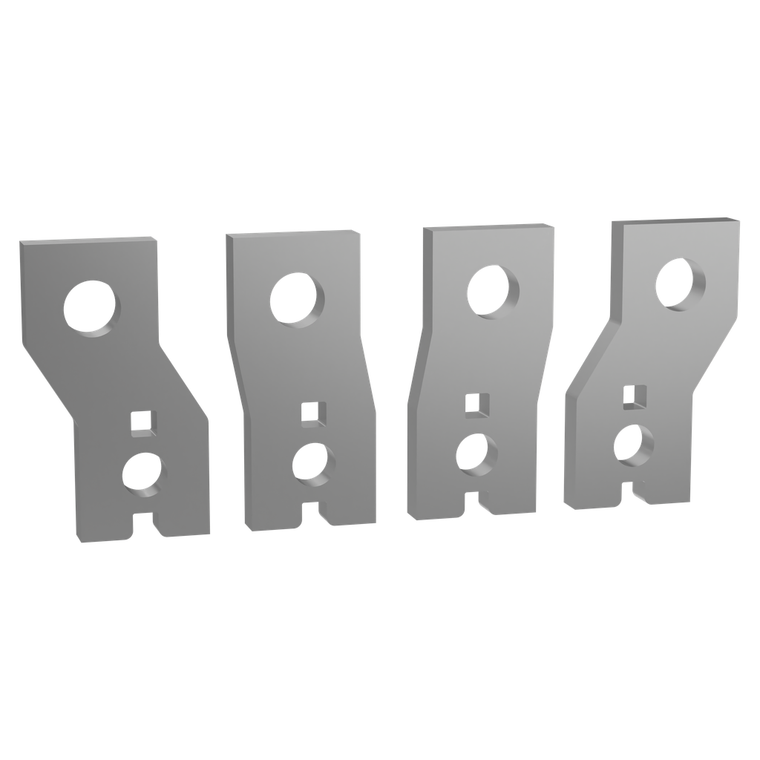

Schneider Electric LV432491 4P Spreader 52.5Mm Ph Barriers Inv/In
Schneider Electric
$231.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
These accessories are spreaders for 3 poles Compact NSX 400/630 and EasyPact CVS 400/630. They are screwed to the circuit-breaker terminals to increase the pitch between poles from 45mm to 52.5mm. The rated current is up to 630 A. These spreaders are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 4 parts.
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Connection Pitch:
- 52.5 mm
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Accessory / Separate Part Category:
- connection accessory
- Line Rated Current:
- 630-630 A
- Poles Description:
- 4P
- Mounting Position:
- straight
- Quantity Per Set:
- 4
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Range Compatibility:
- ComPacT new generation ComPacT NSX400 new generation || ComPacT new generation ComPacT NSX630 new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact ComPact NSX400 || ComPact ComPact NSX630 || ComPact Compact NSX400 DC || C
- Product Or Component Type:
- spreader
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive:
- Compliant
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Datasheet:
- View
