Schneider Electric LV432503 4 Cu 300Mma Crimp Lugs Ph Barriers Inv/

Schneider Electric LV432503 4 Cu 300Mma Crimp Lugs Ph Barriers Inv/

Schneider Electric
SKU:
LV432503
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$870.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

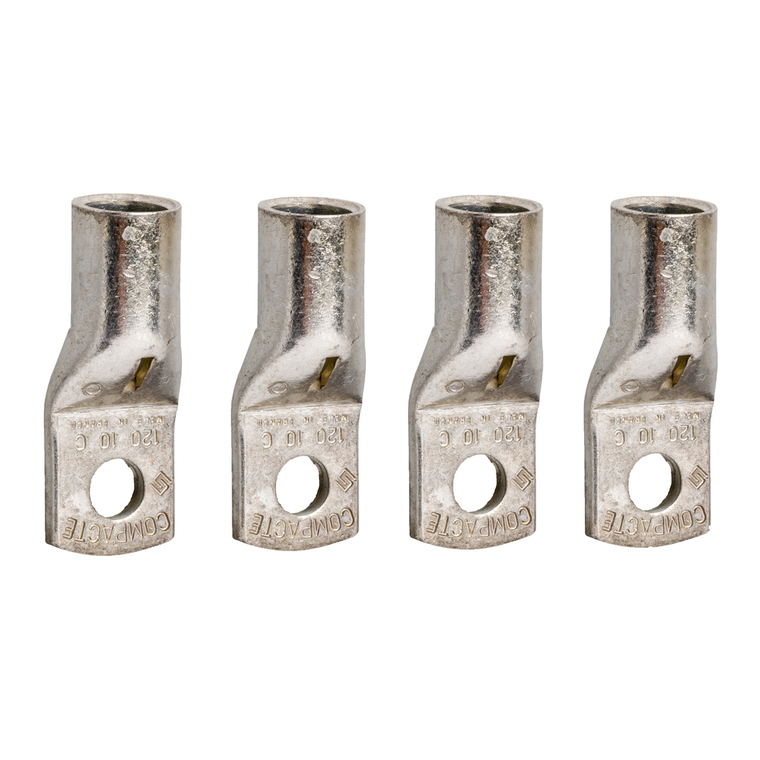

These accessories are crimp lugs for Compact NSX 400/630, EasyPact CVS 400/630 or FuPact INFB 200/860. These crimp lugs may be used for copper cable of 300mm². These crimp lugs are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 4 parts.
Additional Information
Range Compatibility:
ComPacT new generation ComPacT NSX400 new generation || ComPacT new generation ComPacT NSX630 new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact Compact NSX400 || ComPact Compact NSX630 || ComPact Compact NSX400 DC || C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Accessory / Separate Part Category:
connection accessory
Rohs Exemption Information:
Yes
Poles Description:
4P
Mercury Free:
Yes
Quantity Per Set:
set of 4
Product Or Component Type:
crimp lug
Conductor Material:
copper
Toxic Heavy Metal Free:
Yes
Line Rated Current:
630-630 A
Connections - Terminals:
crimp lug1 300-300 mm²
Provided Equipment:
interphase barriers
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Warranty:
18 months
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Compliant
Catalog:
View
Datasheet:
View
