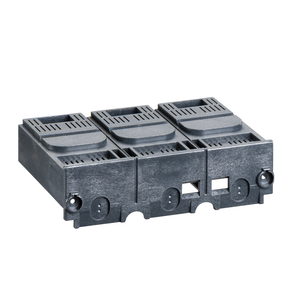

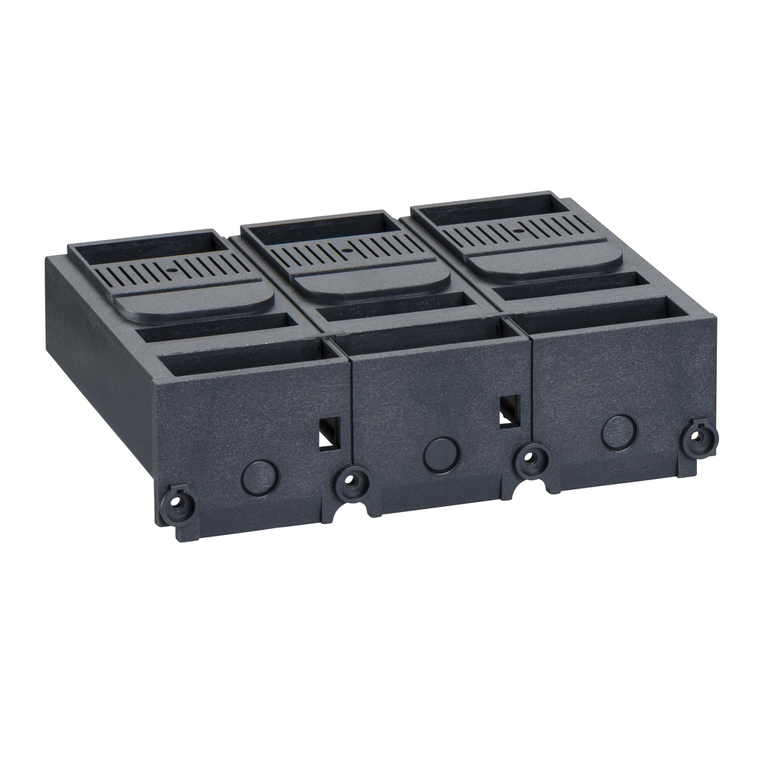

Schneider Electric LV432591 1 3P Short Terminal Shield.

(No reviews yet) Write a Review
SKU:
LV432591
UPC:
3.60648E+12
Condition:
New
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Poles Description:
3P
Connection Pitch:
45 mm
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Range Compatibility:
ComPacT new generation ComPacT NSX400 new generation || ComPacT new generation ComPacT NSX630 new generation || ComPact ComPact NSX400 || ComPact ComPact NSX630 || ComPacT new generation ComPacT NSX DC new generation NSX400 DC || ComPacT new generati
Mercury Free:
Yes
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Quantity Per Set:
1
Accessory / Separate Part Type:
insulation accessories
Warranty:
18 months
Product Or Component Type:
short terminal shield
  • Schneider Electric LV432591 1 3P Short Terminal Shield.
  • Schneider Electric LV432591 1 3P Short Terminal Shield.
$138.00

Description

This is an insulation accessory for 3 poles Compact NSX 400/630 or EasyPact CVS 400/630. This short terminal shield protects against direct contact with power circuit. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
