Schneider Electric

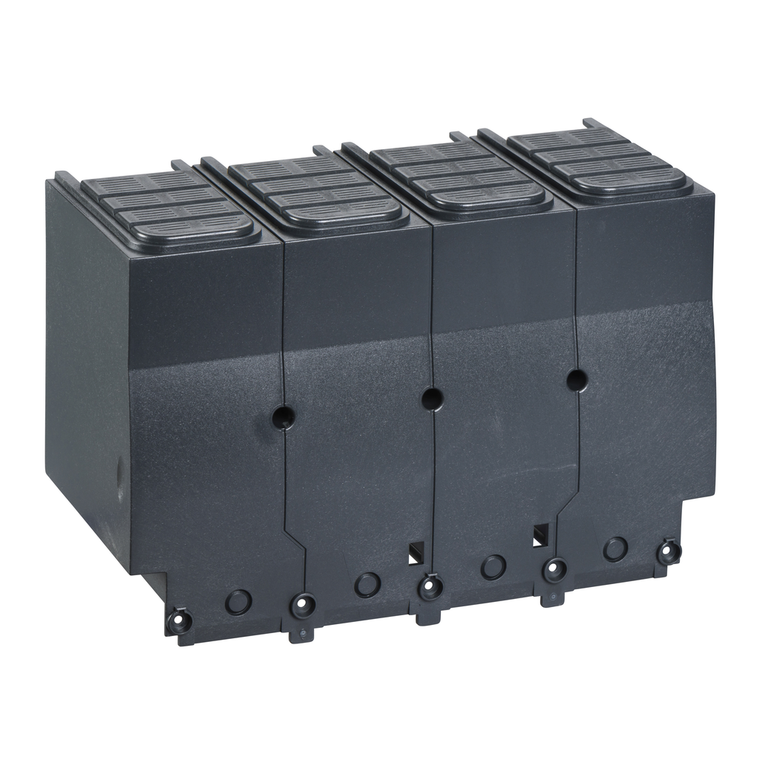

Schneider Electric LV432596 1 4P Long Terminal Shield For Spreader

(No reviews yet) Write a Review
SKU:
LV432596
UPC:
3.60648E+12
Condition:
New
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Product Or Component Type:
long terminal shield
Mercury Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Quantity Per Set:
1
Rohs Exemption Information:
Yes
Range Compatibility:
ComPacT new generation ComPacT NSX400 new generation || ComPacT new generation ComPacT NSX630 new generation || ComPact ComPact NSX400 || ComPact ComPact NSX630 || EasyPact EasyPact CVS400 || EasyPact EasyPact CVS630 || ComPact Compact INV || ComPact
Reach Free Of Svhc:
Yes
Poles Description:
4P
Connection Pitch:
52.5 mm
Accessory / Separate Part Type:
insulation accessories
Toxic Heavy Metal Free:
Yes
Warranty:
18 months
Catalog:
View
Datasheet:
View
$337.50

Description

This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 52.5mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
