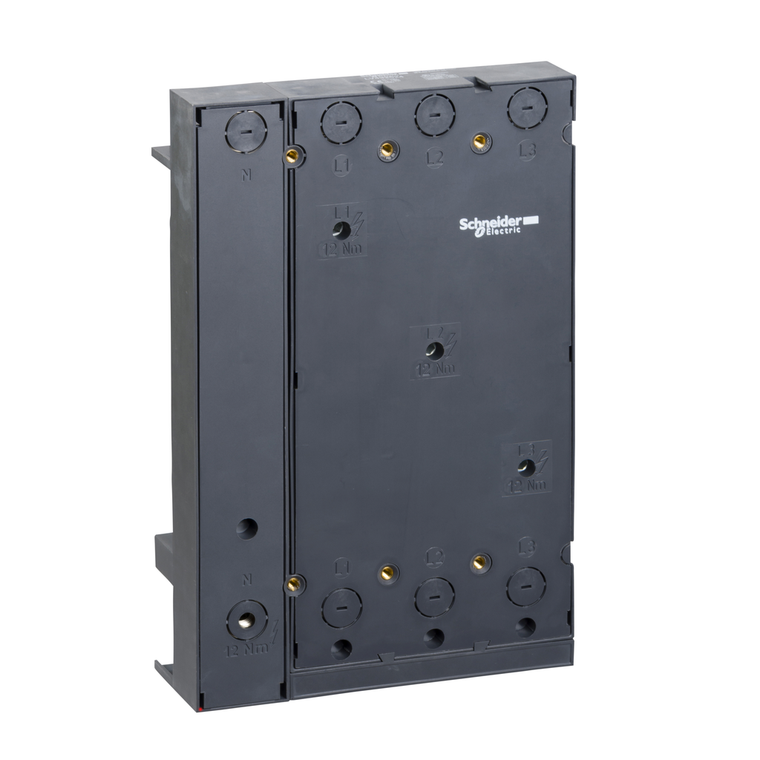

Schneider Electric LV432624 Platine Compact Nsx 400-630 4P

Schneider Electric LV432624 Platine Compact Nsx 400-630 4P

Schneider Electric
SKU:
LV432624
|
UPC:
3.60648E+12
$789.75
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
The NSX mounting plate system for busbar simplifies the installation of 4 poles NSX 400-630 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by snap-on-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. Depending on the cross section of the bars, the busbar associated to terminals can withstand a maximum current of 630A. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using busbars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.
Additional Information
Product Name:
BZ
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Range:
Linergy
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Compliant
Product Compatibility:
NSX400...630
Number Of Ways:
1 way
[Ui] Rated Insulation Voltage:
690 V
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Spacial || ComPact
Reach Free Of Svhc:
Yes
Product Or Component Type:
adaptors for busbar systems
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Width:
184 mm
Depth:
63 mm
Rohs Exemption Information:
Yes
Poles Description:
4P
Environmental Disclosure:
ENVPEP120206EN
Device Short Name:
LA9Z
Circularity Profile:
N/A
Permissible Current:
200 A 12 x 5 mm || 250 A 15 x 5 mm || 320 A 20 x 5 mm || 400 A 25 x 5 mm || 450 A 30 x 5 mm || 360 A 12 x 10 mm || 520 A 20 x 10 mm || 630 A 30 x 10 mm
Height:
284 mm
Ip Degree Of Protection:
IP20 IEC 60529
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Color:
anthracite grey
Busbar Pitch:
60 mm
