Schneider Electric LV434002 Ethernet For Lv Breakers And Gateway
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

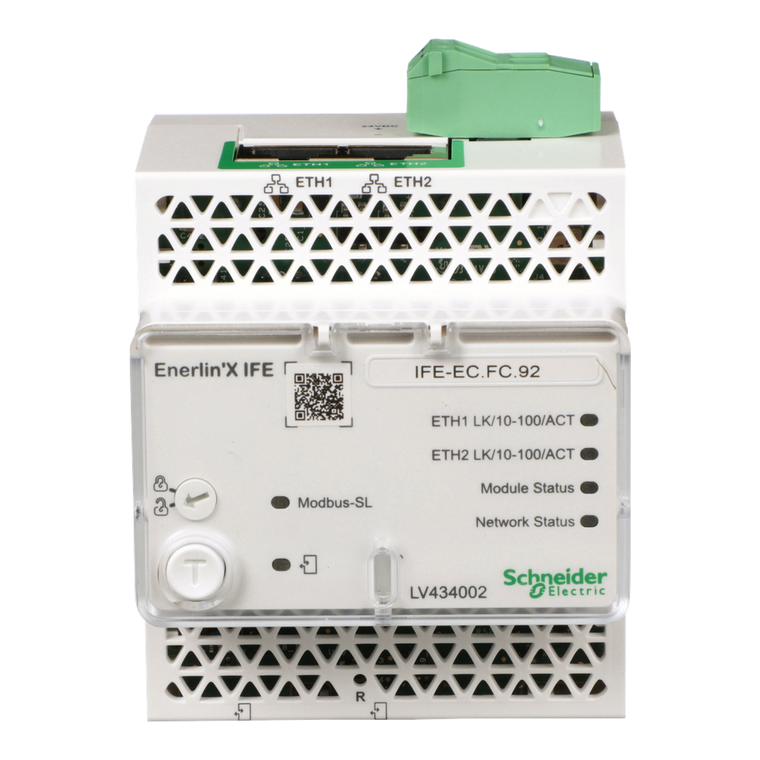

This IFE switchboard server is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to one or several Masterpact, Compact or PowerPact circuit breakers. It incorporates a Modbus gateway. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE switchboard server is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE switchboard server is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE switchboard server firmware can be updated using EcoStruxure Power Commission software.
- Ambient Air Temperature For Operation:
- -20-70 °C
- Warranty:
- 18 months
- Connections - Terminals:
- RJ45 connector
- Range Of Product:
- ComPact NSX100...250 || ComPact NSX400...630 || ComPact NS630b...1600 || ComPact NS1600b...3200
- Control Type:
- by software
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Us] Rated Supply Voltage:
- 24 V DC - 20...10 %
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Flame Retardance:
- V0 conforming to UL 94 || V0 conforming to IEC 60947-1 || V0 conforming to IEC 60695-2-11
- Eu Rohs Directive:
- Compliant with Exemptions
- Height:
- 105 mm
- Standards:
- IEC 60947-6-2 || UL 508 || UL 60950 || IEC 60950
- Maximum Supply Current:
- 0.125
- Shock Resistance:
- 1000 m/s²
- Current Consumption:
- 120 mA
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Relative Humidity:
- 5-85 %
- Net Weight:
- 182.5 g
- Mounting Mode:
- by clips
- Pollution Degree:
- 3
- Environmental Disclosure:
- ENVPEP2305024EN
- Ambient Air Temperature For Storage:
- -40-85 °C
- Mercury Free:
- Yes
- Web Server:
- embedded HTTP server
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- ENVEOLI2305024EN
- Pvc Free:
- Yes
- Device Short Name:
- IFE
- Sustainable Offer Status:
- Green Premium product
- Vibration Frequency:
- 5-8.4 Hz
- Mounting Support:
- 35 mm DIN rail
- Width:
- 72 mm
- Rohs Exemption Information:
- Yes
- Product Certifications:
- CE || GOST || cULus || FCC
- Depth:
- 71 mm
- Communication Network Type:
- Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45 || Universal Logic Plug 2-port RJ45 || Modbus TCP/IP, Modbus TCP master 9.6...38.4 kbauds
- Ip Degree Of Protection:
- connectors IP2X || other parts IP3x || front panel IP4X
- Range Compatibility:
- Masterpact MasterPact MTZ || Masterpact MasterPact NT || Masterpact MasterPact NW || ComPact ComPact NSX || ComPact ComPact NS630b...1600 || ComPact ComPact NS1600b...3200 || PowerPact PowerPact J || PowerPact PowerPact L || PowerPact PowerPact H ||
- Accessory / Separate Part Category:
- spare part Compact NS630b...1600 || spare part Compact NS1600b...3200
- Halogen Content Performance:
- Halogen free plastic parts product
- Product Or Component Type:
- interface module
- Communication Gateway:
- Ethernet TCP/IP to Modbus
- Catalog:
- View
- Datasheet:
- View
