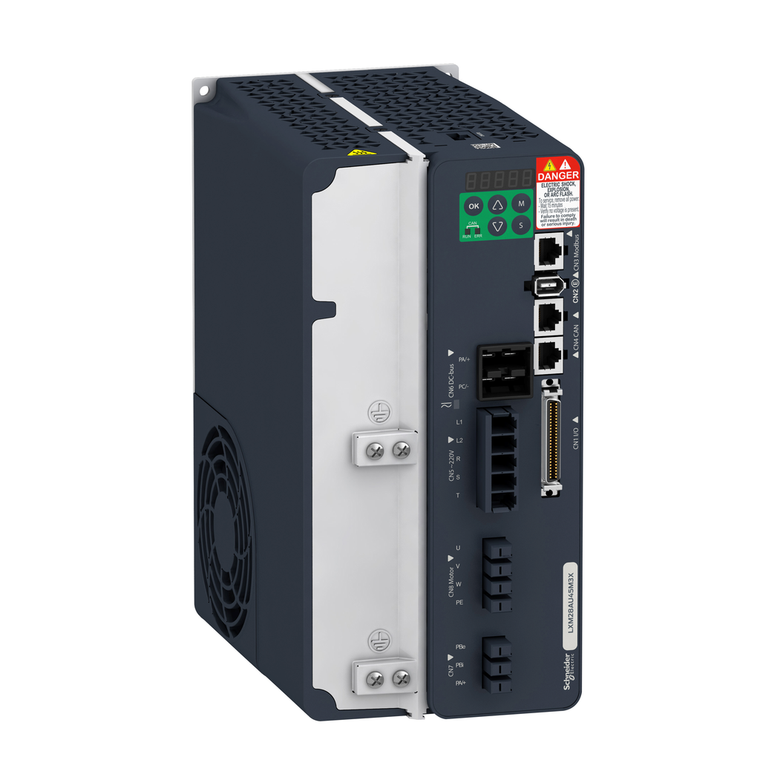

Schneider Electric LXM28AU30M3X Lexium28 Can Io Drive 3Ph 230V 3,0Kw

Schneider Electric LXM28AU30M3X Lexium28 Can Io Drive 3Ph 230V 3,0Kw

Schneider Electric
SKU:
LXM28AU30M3X
|
UPC:
3606480711831
Availability:
Contact us to confirm availability and lead times.
$1,500.59
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (three phase), an output current of 19.8A, nominal power of 3kW and continuous power of 3000W. It is furnished with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. There is an electrical isolation between power/control. It offers CANopen and CAN motion communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 116mm (width) x 186mm (depth) x 234mm (height). It weighs 3.2kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (180mm, 2 motor stacks) at 3000W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Additional Information
Ambient Air Temperature For Storage:
-25-65 °C
Vibration Resistance:
3M4 3 mm 9-200 Hz)IEC 60721-3-3
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Device Short Name:
LXM28A
Safety Level:
SIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 ISO 13849-1 2008 || SIL 2 ISO 13849-1 2009/AC || SIL 2 IEC 60204-1 2006 || SIL 2 IEC 60204-1 2009/A1 || SIL 2 IEC 60204-1 2010/AC || SIL 2 IEC 62061 2012
Discrete Output Logic:
positive or negative CN1)
Discrete Input Logic:
positive or negative CN1)
Shock Resistance:
10 gn, type I IEC 60721-3-3
Absolute Accuracy Error:
0.001
Electromagnetic Compatibility:
conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Status Led:
1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error
Physical Interface:
RS485 Modbus Serial line slave
Format Of The Drive:
compact housing
Net Weight:
3.2 kg
Transmission Rate:
250 kbit/s 100-250 m CANopen, CANmotion || 500 kbit/s 4-100 m CANopen, CANmotion || 1 Mbit/s 4-4 m CANopen, CANmotion
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Discrete Output Number:
5 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
Ip Degree Of Protection:
IP20
Overvoltage Category:
III
Operating Position:
vertical
Type Of Cooling:
integrated fan
Type Of Cable:
shielded motor cable 0-55 °C) copper
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
0-55 °C
Output Current 3S Peak 3:
60 A 220 V
Maximum Leakage Current:
1.6 mA
Product Or Component Type:
motion servo drive
Emc Filter:
without EMC filter
Continuous Power:
3000 W 220 V
Method Of Access:
slave
Discrete Output Voltage:
12...24 V DC
Output Voltage:
<= power supply voltage
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Protection Type:
against reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor
Communication Interface:
CANopen, Integrated || CANmotion, Integrated
Relative Humidity:
5-95 % without condensation
Switching Frequency:
8 kHz
Signalling Function:
servo status and fault codes five 7-segment display units
Analogue Input Type:
V_REF voltage analog input - 10...10 V 10 kOhm 14 bits || T_REF voltage analog input
Width:
116 mm
Output Current 3S Peak 2:
60 A 220 V
Electrical Connection:
spring terminal 6 mm², AWG 10 L1-L2) || spring terminal 6 mm², AWG 10 R, S, T) || spring terminal 6 mm², AWG 10 U, V, W, PE) || spring terminal 6 mm², AWG 10 PA/+, PBe)
Connector Type:
RJ45 CN4)CANopen, CANmotion
Environmental Disclosure:
ENVPEP1409001EN
Marking:
CSA || CE || cULus
Discrete Input Voltage:
24 V DC logic
Product Certifications:
CSA || cULus || CE
Circularity Profile:
ENVEOLI1409001EN
Phase:
three phase
Line Current:
11.8 A 155.8 % 220 V, three phase
Reach Free Of Svhc:
Yes
Height:
234 mm
Standards:
IEC 61800-5-1
Network Frequency:
47.5...63 Hz
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Product Compatibility:
servo motor BCH2 180 mm, 2 3000 W
Supply Frequency:
50/60 Hz - 5...5 %
[Us] Rated Supply Voltage:
200...240 V - 10...15 %)three phase
Depth:
186 mm
Rohs Exemption Information:
Yes
Electrical Isolation:
between power and control
Range Of Product:
Lexium 28
Mercury Free:
Yes
Number Of Addresses:
1-127 CANopen, CANmotion
Analogue Input Number:
2
Nominal Power:
3 kW 220 V 8 kHz
Pvc Free:
Yes
Discrete Input Number:
8 programmable CN1) || 1 pulse train input (PTI) CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
Supply Voltage Limits:
200-255 V three phase
Continuous Output Current:
19.8 A 8 kHz
Control Signal Type:
servo motor encoder feedback CN2
Safety Function:
STO (safe torque off), Integrated
Output Current 3S Peak:
60 A 220 V
