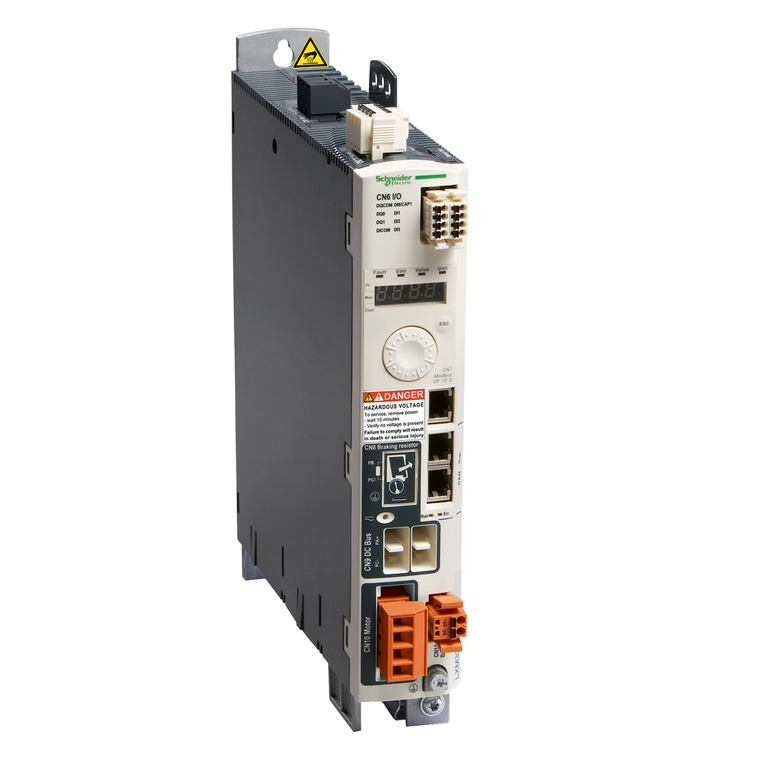

Schneider Electric LXM32AD30N4 Lxm32A Can Rj45 30A Rms Peak 3Ph 480V
Schneider Electric
$1,915.04
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LXM32AD30N4 Lxm32A Can Rj45 30A Rms Peak 3Ph 480V
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
- Warranty:
- 18 months
- Depth:
- 237 mm
- Braking Current:
- 50 mA
- Discrete Input Logic:
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
- Communication Service:
- 1 receive SDO CANmotion || 1 transmit SDO CANmotion || 2 PDOs conforming to DSP 402 CANmotion || 2 SDOs receive CANopen || 2 SDOs send CANopen || 4 configurable mapping PDOs CANopen || CANopen device profile drives and motion control CANopen, CANmoti
- Type Of Cooling:
- integrated fan
- Operating Position:
- vertical +/- 10 degree
- Continuous Output Current:
- 10 A 8 kHz
- Supply Voltage Limits:
- 170-264 V || 323-528 V
- Discrete Input Number:
- 1 capture || 2 safety || 4 logic
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
- Network Frequency:
- 47.5...63 Hz
- Discrete Output Logic:
- positive or negative DO)EN/IEC 61131-2
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 % || 380...480 V - 15...10 %
- Discrete Input Type:
- capture CAP || logic DI || safety compliment of STO_A, compliment of STO_B
- Width:
- 68 mm
- Product Compatibility:
- servo motor BMH 100 mm, 3 || servo motor BMH 140 mm, 1 || servo motor BSH 100 mm, 3 || servo motor BSH 100 mm, 4 || servo motor BSH 140 mm, 1
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60028-2-27
- Environmental Disclosure:
- ENVPEP110705EN
- Environmental Characteristic:
- classes 3C1 IEC 60721-3-3
- Circularity Profile:
- ENVEOLI110605EN
- Net Weight:
- 2.6 kg
- Communication Interface:
- CANmotion, Integrated || CANopen, Integrated || Modbus, Integrated
- Ambient Air Temperature For Operation:
- 0-50 °C UL
- Nominal Power:
- 2 kW 208 V 8 kHz || 3 kW 400 V 8 kHz || 3 kW 480 V 8 kHz
- Type Of Cable:
- single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
- Device Short Name:
- LXM32A
- Emc Filter:
- integrated
- Mercury Free:
- Yes
- Discrete Output Number:
- 2
- Line Current:
- 9.2 A 59 % 208 V, with external line choke 1 mH || 11.1 A 77 % 400 V, with external line choke 1 mH || 9.6 A 85 % 480 V, with external line choke 1 mH || 9.8 A 128 % 208 V, without line choke || 8.3 A 148 % 400 V, without line choke || 7 A 152 % 480
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Status Led:
- 1 LED (Red) servo drive voltage || 1 LED error || 1 LED RUN
- Phase:
- three phase
- Control Signal Type:
- servo motor encoder feedback
- Pvc Free:
- Yes
- Supply Frequency:
- 50/60 Hz - 5...5 %
- Electrical Connection:
- terminal 3 mm², AWG 12 CN8) || terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10)
- Electrical Isolation:
- between power and control
- Number Of Addresses:
- 1-127 CANopen, CANmotion || 1-247 Modbus
- Signalling Function:
- display of faults 7 segments
- Pollution Degree:
- 2 EN/IEC 61800-5-1
- Discrete Output Voltage:
- <= 30 V DC
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Discrete Output Type:
- logic DO)24 V DC
- Contact Bounce Time:
- <= 1 ms compliment of STO_A, compliment of STO_B || 2 µs CAP || 0.25 µs...1.5 ms DI
- Product Or Component Type:
- motion servo drive
- Output Voltage:
- <= power supply voltage
- Electromagnetic Compatibility:
- conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || conducted EMC, environments 1 and 2 EN/IEC 61800-3 || electr
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Protection Type:
- against reverse polarity inputs signal || against short-circuits outputs signal
- Maximum Leakage Current:
- 30 mA
- Response Time:
- <= 5 ms compliment of STO_A, compliment of STO_B
- China Rohs Regulation:
- X
- Range Of Product:
- Lexium 32
- Height:
- 270 mm
- Safety Function:
- STO (safe torque off), Integrated
- Discrete Input Voltage:
- 24 V DC capture || 24 V DC logic || 24 V DC safety
- Marking:
- CE
- Ip Degree Of Protection:
- IP20 EN/IEC 60529 || IP20 EN/IEC 61800-5-1
- Response Time On Output:
- 250 µs DO)discrete
- Switching Frequency:
- 8 kHz
- Method Of Access:
- slave
- Connector Type:
- RJ45 (labelled CN4 or CN5) CANmotion || RJ45 (labelled CN4 or CN5) CANopen || RJ45 (labelled CN7) Modbus
- Product Certifications:
- UL || CSA || TÃV
- Output Current 3S Peak:
- 30 A 208 V 5 s || 30 A 480 V 5 s
- Ambient Air Temperature For Storage:
- -25-70 °C
- Relative Humidity:
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
- Format Of The Drive:
- book
- Overvoltage Category:
- III
- Standards:
- EN/IEC 61800-3 || EN/IEC 61800-5-1
- Continuous Power:
- 2800 W 208 V || 5600 W 400 V || 5600 W 480 V
- Transmission Rate:
- 1 Mbps 4-4 m CANopen, CANmotion || 125 kbps 500-500 m CANopen, CANmotion || 250 kbps 250-250 m CANopen, CANmotion || 50 kbps 1000-1000 m CANopen, CANmotion || 500 kbps 100-100 m CANopen, CANmotion || 9600, 19200, 38400 bps 40-40 m Modbus
- Safety Level:
- SIL 3 EN/IEC 61508 || PL = e ISO 13849-1
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Physical Interface:
- 2-wire RS485 multidrop Modbus
- Tightening Torque:
- CN8 0.5-0.5 N.m || CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sampling Duration:
- DI 0.25 ms discrete
