Schneider Electric LXM32AU45M2 Lxm32A Can Rj45 4,5A Rms Peak 1Ph 230V
Schneider Electric
$1,118.56
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

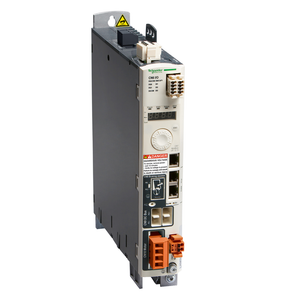

Schneider Electric LXM32AU45M2 Lxm32A Can Rj45 4,5A Rms Peak 1Ph 230V
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 1.5A at 8kHz and a continuous power of 500W at 230V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 48mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motor BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
- Range Of Product:
- Lexium 32
- Safety Function:
- STO (safe torque off), Integrated
- Product Compatibility:
- servo motor BSH 55 mm, 1
- Maximum Leakage Current:
- 30 mA
- Output Voltage:
- <= power supply voltage
- Method Of Access:
- slave
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Communication Interface:
- CANmotion, Integrated || CANopen, Integrated || Modbus, Integrated
- Emc Filter:
- integrated
- Discrete Output Type:
- logic DO)24 V DC
- Transmission Rate:
- 1 Mbps 4-4 m CANopen, CANmotion || 125 kbps 500-500 m CANopen, CANmotion || 250 kbps 250-250 m CANopen, CANmotion || 50 kbps 1000-1000 m CANopen, CANmotion || 500 kbps 100-100 m CANopen, CANmotion || 9600, 19200, 38400 bps 40-40 m Modbus
- Mercury Free:
- Yes
- Sampling Duration:
- DI 0.25 ms discrete
- Ambient Air Temperature For Storage:
- -25-70 °C
- Discrete Output Logic:
- positive or negative DO)EN/IEC 61131-2
- Electrical Isolation:
- between power and control
- Product Certifications:
- TÃV || CSA || UL
- Standards:
- EN/IEC 61800-3 || EN/IEC 61800-5-1
- Network Frequency:
- 47.5...63 Hz
- Continuous Power:
- 200 W 115 V || 500 W 230 V
- Ambient Air Temperature For Operation:
- 0-50 °C UL
- Discrete Input Voltage:
- 24 V DC capture || 24 V DC logic || 24 V DC safety
- Number Of Addresses:
- 1-127 CANopen, CANmotion || 1-247 Modbus
- Discrete Input Number:
- 1 capture || 2 safety || 4 logic
- Status Led:
- 1 LED (Red) servo drive voltage || 1 LED error || 1 LED RUN
- Phase:
- single phase
- Net Weight:
- 1.6 kg
- Type Of Cooling:
- natural convection
- Environmental Disclosure:
- ENVPEP110705EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Pollution Degree:
- 2 EN/IEC 61800-5-1
- Output Current 3S Peak:
- 3 A 115 V 5 s || 4.5 A 230 V 5 s
- Depth:
- 237 mm
- Physical Interface:
- 2-wire RS485 multidrop Modbus
- Nominal Power:
- 0.15 kW 115 V 8 kHz || 0.3 kW 230 V 8 kHz
- Protection Type:
- against reverse polarity inputs signal || against short-circuits outputs signal
- Overvoltage Category:
- III
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- IP20 EN/IEC 60529 || IP20 EN/IEC 61800-5-1
- Line Current:
- 2.6 A 85 % 115 V, with external line choke 5 mH || 3.4 A 100 % 230 V, with external line choke 5 mH || 2.9 A 173 % 115 V, without line choke || 2.9 A 181 % 230 V, without line choke
- Communication Service:
- 1 receive SDO CANmotion || 1 transmit SDO CANmotion || 2 PDOs conforming to DSP 402 CANmotion || 2 SDOs receive CANopen || 2 SDOs send CANopen || 4 configurable mapping PDOs CANopen || CANopen device profile drives and motion control CANopen, CANmoti
- Tightening Torque:
- CN8 0.5-0.5 N.m || CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m
- Type Of Cable:
- single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
- Warranty:
- 18 months
- Supply Frequency:
- 50/60 Hz - 5...5 %
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Braking Current:
- 50 mA
- Circularity Profile:
- ENVEOLI110605EN
- Electrical Connection:
- terminal 3 mm², AWG 12 CN8) || terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10)
- Discrete Input Logic:
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
- Response Time On Output:
- 250 µs DO)discrete
- Width:
- 48 mm
- Marking:
- CE
- Supply Voltage Limits:
- 85-132 V || 170-264 V
- Operating Position:
- vertical +/- 10 degree
- Relative Humidity:
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
- Height:
- 270 mm
- Safety Level:
- SIL 3 EN/IEC 61508 || PL = e ISO 13849-1
- Sustainable Offer Status:
- Green Premium product
- Format Of The Drive:
- book
- Signalling Function:
- display of faults 7 segments
- Product Or Component Type:
- motion servo drive
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
- Continuous Output Current:
- 1.5 A 8 kHz
- Discrete Input Type:
- capture CAP || logic DI || safety compliment of STO_A, compliment of STO_B
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Electromagnetic Compatibility:
- conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || conducted EMC, environments 1 and 2 EN/IEC 61800-3 || electr
- Contact Bounce Time:
- <= 1 ms compliment of STO_A, compliment of STO_B || 2 µs CAP || 0.25 µs...1.5 ms DI
- Device Short Name:
- LXM32A
- Connector Type:
- RJ45 (labelled CN4 or CN5) CANmotion || RJ45 (labelled CN4 or CN5) CANopen || RJ45 (labelled CN7) Modbus
- Discrete Output Number:
- 2
- Discrete Output Voltage:
- <= 30 V DC
- Environmental Characteristic:
- classes 3C1 IEC 60721-3-3
- Switching Frequency:
- 8 kHz
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60028-2-27
- Control Signal Type:
- servo motor encoder feedback
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Us] Rated Supply Voltage:
- 100...120 V - 15...10 % || 200...240 V - 15...10 %
- Pvc Free:
- Yes
- Response Time:
- <= 5 ms compliment of STO_A, compliment of STO_B
- China Rohs Regulation:
- X
