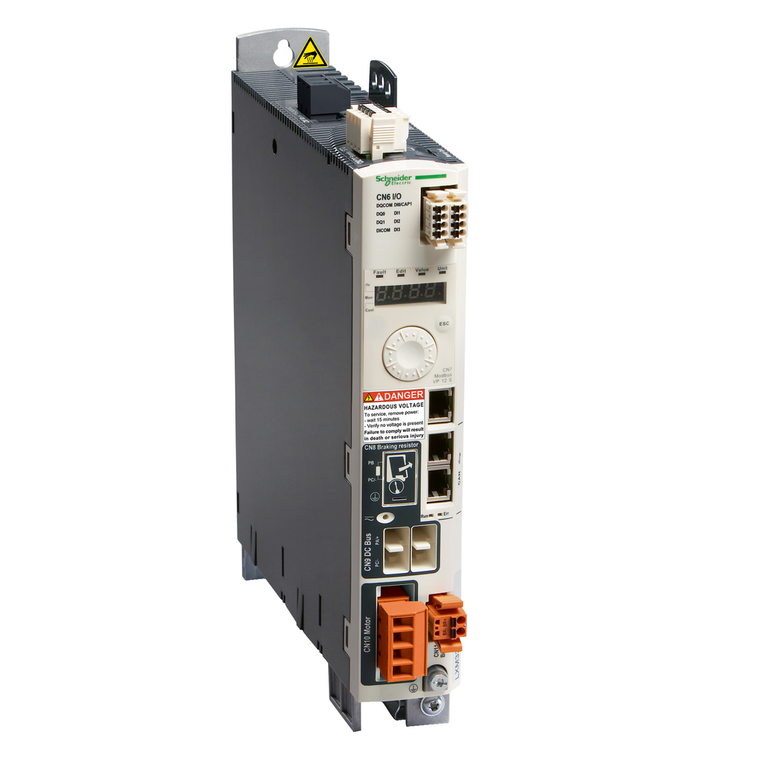

Schneider Electric LXM32AU60N4 Lxm32A Can Rj45 6A Rms Peak 3Ph 480V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LXM32AU60N4 Lxm32A Can Rj45 6A Rms Peak 3Ph 480V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LXM32AU60N4

UPC:

3.60648E+12

MPN:

Condition:

New

Continuous Output Current:

1.5 A 8 kHz

Type Of Cooling:

natural convection

Format Of The Drive:

book

Electrical Isolation:

between power and control

Circularity Profile:

ENVEOLI110605EN

Control Signal Type:

servo motor encoder feedback

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Connection:

terminal 3 mm², AWG 12 CN8) || terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10)

Contact Bounce Time:

<= 1 ms compliment of STO_A, compliment of STO_B || 2 µs CAP || 0.25 µs...1.5 ms DI

Vibration Resistance:

1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6

Warranty:

18 months

Response Time On Output:

250 µs DO)discrete

Discrete Input Type:

capture CAP || logic DI || safety compliment of STO_A, compliment of STO_B

Environmental Characteristic:

classes 3C1 IEC 60721-3-3

Line Current:

1.7 A 97 % 208 V, with external line choke 2 mH || 1.8 A 108 % 400 V, with external line choke 2 mH || 1.6 A 116 % 480 V, with external line choke 2 mH || 1.8 A 132 % 208 V, without line choke || 1.4 A 191 % 400 V, without line choke || 1.2 A 201 % 4

Depth:

237 mm

Communication Service:

1 receive SDO CANmotion || 1 transmit SDO CANmotion || 2 PDOs conforming to DSP 402 CANmotion || 2 SDOs receive CANopen || 2 SDOs send CANopen || 4 configurable mapping PDOs CANopen || CANopen device profile drives and motion control CANopen, CANmoti

Net Weight:

1.7 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Output Logic:

positive or negative DO)EN/IEC 61131-2

Range Of Product:

Lexium 32

Height:

270 mm

Number Of Addresses:

1-127 CANopen, CANmotion || 1-247 Modbus

Environmental Disclosure:

ENVPEP110705EN

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Operation:

0-50 °C UL

Braking Current:

50 mA

Width:

48 mm

Output Voltage:

<= power supply voltage

Communication Interface:

CANmotion, Integrated || CANopen, Integrated || Modbus, Integrated

Output Current 3S Peak:

6 A 208 V 5 s || 6 A 480 V 5 s

Status Led:

1 LED (Red) servo drive voltage || 1 LED error || 1 LED RUN

Tightening Torque:

CN8 0.5-0.5 N.m || CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m

Pollution Degree:

2 EN/IEC 61800-5-1

Rohs Exemption Information:

Yes

Connector Type:

RJ45 (labelled CN4 or CN5) CANmotion || RJ45 (labelled CN4 or CN5) CANopen || RJ45 (labelled CN7) Modbus

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions

Ambient Air Temperature For Storage:

-25-70 °C

Supply Frequency:

50/60 Hz - 5...5 %

Product Compatibility:

servo motor BMH 70 mm, 1 || servo motor BSH 55 mm, 3 || servo motor BSH 55 mm, 1 || servo motor BSH 55 mm, 2

Standards:

EN/IEC 61800-5-1 || EN/IEC 61800-3

Mercury Free:

Yes

Safety Function:

STO (safe torque off), Integrated

Switching Frequency:

8 kHz

Marking:

CE

Response Time:

<= 5 ms compliment of STO_A, compliment of STO_B

Device Short Name:

LXM32A

Method Of Access:

slave

Physical Interface:

2-wire RS485 multidrop Modbus

Electromagnetic Compatibility:

conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || conducted EMC, environments 1 and 2 EN/IEC 61800-3 || electr

Discrete Output Type:

logic DO)24 V DC

Network Frequency:

47.5...63 Hz

Phase:

three phase

Transmission Rate:

1 Mbps 4-4 m CANopen, CANmotion || 125 kbps 500-500 m CANopen, CANmotion || 250 kbps 250-250 m CANopen, CANmotion || 50 kbps 1000-1000 m CANopen, CANmotion || 500 kbps 100-100 m CANopen, CANmotion || 9600, 19200, 38400 bps 40-40 m Modbus

Safety Level:

SIL 3 EN/IEC 61508 || PL = e ISO 13849-1

Continuous Power:

400 W 208 V || 800 W 400 V || 800 W 480 V

Maximum Leakage Current:

30 mA

Discrete Input Logic:

positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1

Product Certifications:

CSA || UL || TÜV

China Rohs Regulation:

X

Supply Voltage Limits:

170-264 V || 323-528 V

Operating Position:

vertical +/- 10 degree

Shock Resistance:

15 gn 11 ms EN/IEC 60028-2-27

Discrete Input Voltage:

24 V DC capture || 24 V DC logic || 24 V DC safety

Product Or Component Type:

motion servo drive

Pvc Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Overvoltage Category:

III

Emc Filter:

integrated

Protection Type:

against reverse polarity inputs signal || against short-circuits outputs signal

Relative Humidity:

Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3

Discrete Input Number:

1 capture || 2 safety || 4 logic

Sampling Duration:

DI 0.25 ms discrete

Discrete Output Number:

2

Discrete Output Voltage:

<= 30 V DC

Type Of Cable:

single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR

[Us] Rated Supply Voltage:

200...240 V - 15...10 % || 380...480 V - 15...10 %

Sustainable Offer Status:

Green Premium product

Nominal Power:

0.35 kW 208 V 8 kHz || 0.4 kW 400 V 8 kHz || 0.4 kW 480 V 8 kHz

Signalling Function:

display of faults 7 segments

Ip Degree Of Protection:

IP20 EN/IEC 60529 || IP20 EN/IEC 61800-5-1
