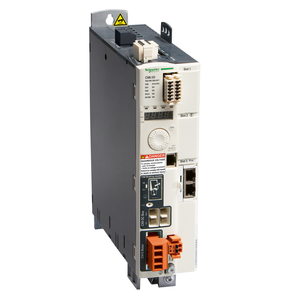

Schneider Electric LXM32MD85N4 Lxm32 Modular 85A Rms Peak 3Ph 480V
Schneider Electric
$3,160.23
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LXM32MD85N4 Lxm32 Modular 85A Rms Peak 3Ph 480V
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture, 2 safety, 4 logic discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 32A at 4kHz and a continuous power of 1600W at 400V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. CANopen, CANmotion, Ethernet/IP, EtherCAT, Profibus, DeviceNet possible with option card. It is an IP20 rated product. Its dimensions are 180mm (Width) x 240mm (Depth) x 385mm (Height). It weighs 9.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motor BMH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
- Braking Current:
- 50 mA
- Relative Humidity:
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
- Transmission Rate:
- 9600, 19200, 38400 bps 40-40 m Modbus
- Device Short Name:
- LXM32M
- Rohs Exemption Information:
- Yes
- Depth:
- 240 mm
- Emc Filter:
- integrated
- Contact Bounce Time:
- <= 1 ms compliment of STO_A, compliment of STO_B || 2 µs CAP || 0.25 µs...1.5 ms DI
- Number Of Addresses:
- 1-247 Modbus
- Discrete Output Voltage:
- <= 30 V DC
- Product Certifications:
- CSA || TÃV || UL
- Product Compatibility:
- servo motor BMH 190 mm, 1 || servo motor BMH 190 mm, 2 || servo motor BMH 190 mm, 3 || servo motor BMH 205 mm, 3
- Standards:
- EN/IEC 61800-3 || EN/IEC 61800-5-1
- Discrete Input Type:
- capture CAP || logic DI || safety compliment of STO_A, compliment of STO_B
- Electrical Connection:
- terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10) || terminal 8 mm², AWG 8 CN8)
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Protection Type:
- against reverse polarity inputs signal || against short-circuits outputs signal
- Line Current:
- 3.5 A 88 % 380 V, with external line choke 2 mH || 2.9 A 98 % 480 V, with external line choke 2 mH || 3.6 A 174 % 480 V, without line choke || 19.9 A 145 % 480 V, without line choke
- Maximum Leakage Current:
- 30 mA
- Sustainable Offer Status:
- Green Premium product
- Width:
- 180 mm
- Pvc Free:
- Yes
- Type Of Cooling:
- integrated fan
- Format Of The Drive:
- book
- Status Led:
- 1 LED (Red) servo drive voltage
- Physical Interface:
- 2-wire RS485 multidrop Modbus
- Range Of Product:
- Lexium 32
- Discrete Input Number:
- 2 capture || 2 safety || 4 logic
- Environmental Disclosure:
- ENVPEP110705EN
- Output Current 3S Peak:
- 85 A 480 V 5 s
- Product Or Component Type:
- motion servo drive
- Response Time On Output:
- 250 µs DO)discrete
- Net Weight:
- 9.6 kg
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Control Signal Type:
- pulse train output (PTO) RS422 <500 kHz <100 m || pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m || pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m || pulse/direction (P/D), A/B, CW/CCW RS
- Operating Position:
- vertical +/- 10 degree
- Supply Voltage Limits:
- 323-528 V
- Continuous Power:
- 1600 W 400 V || 9000 W 230 V || 9000 W 480 V
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60028-2-27
- Type Of Cable:
- single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
- Overvoltage Category:
- III
- Mercury Free:
- Yes
- Response Time:
- <= 5 ms compliment of STO_A, compliment of STO_B
- Safety Function:
- STO (safe torque off), Integrated || SS1 (safe stop 1), with separated eSM safety card || SS2 (safe stop 2), with separated eSM safety card || SLS (safe limited speed), with separated eSM safety card
- Ambient Air Temperature For Storage:
- -25-70 °C
- Communication Interface:
- Modbus, Integrated || CANopen, with separated communication card || CANmotion, with separated communication card || Ethernet/IP, with separated communication card || DeviceNet, with separated communication card || I/O, with separated communication ca
- Continuous Output Current:
- 32 A 4 kHz
- Safety Level:
- SIL 3 EN/IEC 61508 || PL = e ISO 13849-1
- Electrical Isolation:
- between power and control
- Phase:
- three phase
- [Us] Rated Supply Voltage:
- 380...480 V - 15...10 %
- Network Frequency:
- 47.5...63 Hz
- Tightening Torque:
- CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m || CN8 3.8-3.8 N.m
- Sampling Duration:
- DI 0.25 ms discrete || 0.25 ms
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electromagnetic Compatibility:
- conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || susceptibility to electromagnetic fields, level 3 EN/IEC 610
- Supply Frequency:
- 50/60 Hz - 5...5 %
- Marking:
- CE
- Pollution Degree:
- 2 EN/IEC 61800-5-1
- Nominal Power:
- 9 kW 400 V 8 kHz || 5 kW 230 V 4 kHz || 9 kW 480 V 8 kHz
- Height:
- 385 mm
- Circularity Profile:
- ENVEOLI110605EN
- Discrete Output Logic:
- positive or negative DO)EN/IEC 61131-2
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Discrete Output Number:
- 3
- Environmental Characteristic:
- classes 3C1 IEC 60721-3-3
- Ambient Air Temperature For Operation:
- 0-50 °C UL
- Output Voltage:
- <= power supply voltage
- China Rohs Regulation:
- X
- Discrete Output Type:
- logic DO)24 V DC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Signalling Function:
- display of faults 7 segments
- Discrete Input Voltage:
- 24 V DC capture || 24 V DC logic || 24 V DC safety
- Warranty:
- 18 months
- Discrete Input Logic:
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
- Switching Frequency:
- 4 kHz
- Connector Type:
- RJ45 (labelled CN7) Modbus
- Ip Degree Of Protection:
- IP20 EN/IEC 60529 || IP20 EN/IEC 61800-5-1
