Schneider Electric

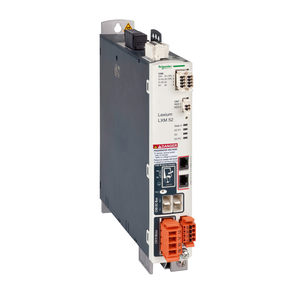

Schneider Electric LXM52DD30C41000 Lexium52 Drive 30A Rms Peak 3Ph 480V

(No reviews yet) Write a Review
SKU:
LXM52DD30C41000
UPC:
3.60648E+12
Condition:
New
Width:
68 mm
Product Certifications:
CE || UL
Contact Bounce Time:
> 1 ms compliment of STO_A, compliment of STO_B
Discrete Input Voltage:
24 V DC
Discrete Output Voltage:
24 V DC
Pvc Free:
Yes
Ip Degree Of Protection:
IP20 EN/IEC 60721-3-3
Continuous Output Current:
10 A 8 kHz
Rohs Exemption Information:
Yes
Phase:
3 phase
Number Of Inputs:
4 digital || 4 touch probe
Shock Resistance:
100 m/s² EN/IEC 60721-3-3
Device Short Name:
LXM 52
Continuous Power:
5.6 kW
Mercury Free:
Yes
Nominal Power:
3 kW
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
single drive
Depth:
217 mm
Environmental Disclosure:
ENVPEP110705EN
Net Weight:
2.7 kg
Vibration Resistance:
10 m/s²EN/IEC 60721-3-3
Supply Frequency:
50...60 Hz - 5...5 %
Standards:
EN/IEC 61800-3 || EN/IEC 61800-5-1
Height:
270 mm
Circularity Profile:
ENVEOLI110605EN
[Us] Rated Supply Voltage:
208...480 V - 15...10 %
Ambient Air Temperature For Operation:
0-50 °C
Switching Frequency:
8 kHz
Range Of Product:
PacDrive 3
Tightening Torque:
CN1 0.68-0.68 N.m || CN10 0.68-0.68 N.m
Overvoltage Category:
III
Number Of Outputs:
2 digital
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Pollution Degree:
2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental Characteristic:
3K3 IEC 60721-3-3
Output Current 3S Peak:
30 A
Electrical Connection:
terminal 0.75...5.3 mm², AWG 18...AWG 10 CN1) || terminal 0.75...5.3 mm², AWG 18...AWG 10 CN10)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Relative Humidity:
5-95 %
Product Compatibility:
servo motor SH3 100 mm, 3 optimized in terms of torque and speed || servo motor SH3 100 mm, 4 optimized in terms of torque and speed || servo motor SH3 140 mm, 1 optimized in terms of torque and speed || servo motor MH3 100 mm, 3 optimized in terms o
Catalog:
View
Datasheet:
View
$2,082.98

Description

This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital/4 touch probe inputs and 4 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 10A and a continuous power of 3kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 2.7kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
